Standard water/oil heat exchangers MSG84P7
Click image to enlarge

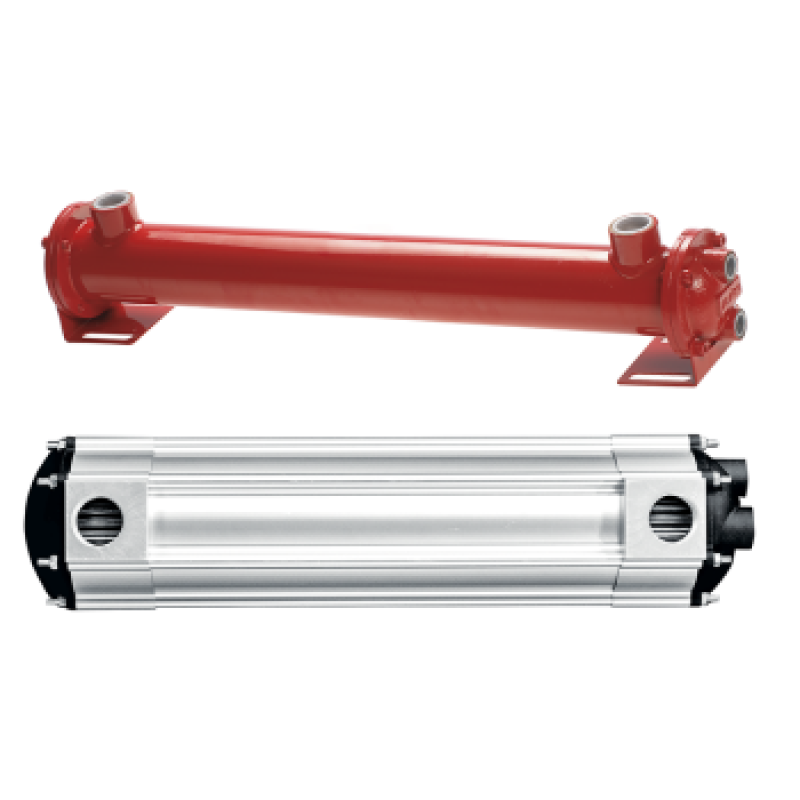

Water-to-oil heat exchanger

Standard water/oil heat exchangers MSG84P7
Model: MSG84P7
  • Model:
    MSG84P7
Minimum oil flow (L/min)100
Maximum oil flow (L/min)160
Connection specification1 1/2" BSP
Maximum working pressure (bar)12
Tube materialCopper-nickel 90/10
Full specifications ↓ Technical catalog · PDF

Description

MSG84P7 is a water-to-oil heat exchanger with a catalog oil-flow range of 100–160 L/min. The model-specific connections and drawing are provided in the linked official documentation.

The source lists a heat-transfer range of 11–21 kW, but does not state the test temperatures or viscosity for that range. It is retained as a catalog value and is excluded from the numeric heat-transfer filters. The technical sheet lists 12 bar maximum working pressure.

Technical documentation publisher: DICSA. Official model data (PDF).

Full specifications

Technical specifications
Component type Water-to-oil heat exchanger
Maximum working pressure (bar) 12
Minimum oil flow (L/min) 100
Maximum oil flow (L/min) 160
Connection specification 1 1/2" BSP
Tube material Copper-nickel 90/10
Shell material Brass
End cap material Bronze
Catalog heat-transfer range (kW) 11–21
Thermal rating conditions Not stated in the current exact-model source

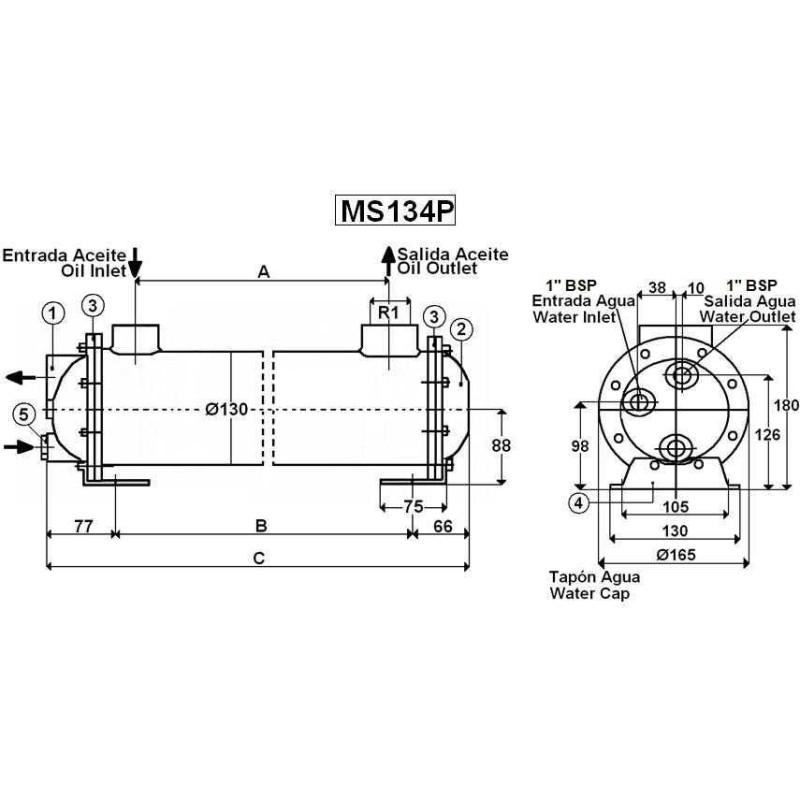

Original specifications — unverified
Unverified original: A 715
Unverified original: B 667-739
Unverified original: C 847
