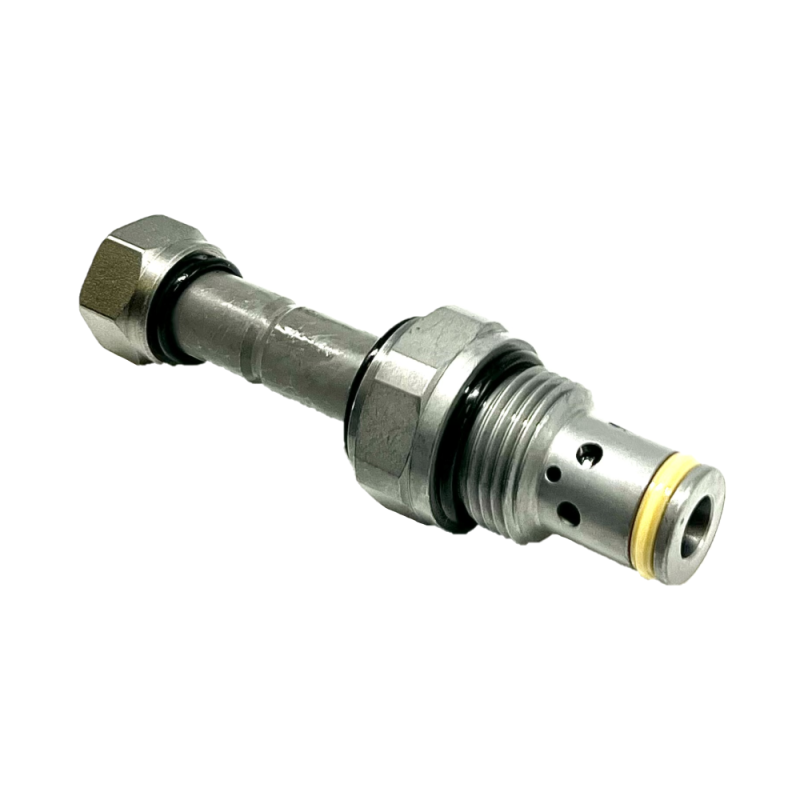

Oleodinamica 2MP SVCP-S10-TD4-N-0-000 Normally open Solenoid Cartridge Valve
Click image to enlarge
Solenoid-operated cartridge valve

Oleodinamica 2MP SVCP-S10-TD4-N-0-000 Normally open Solenoid Cartridge Valve
Model: SVCP-S10-TD4-N-0-000 · Oleodinamica 2MP
Maximum working pressure (bar)350
Nominal flow (l/min)70
Number of ways2
ActuationSolenoid
MountingScrew-in cartridge
Cartridge thread7/8-14 UNF
Full specifications ↓ Technical catalog · PDF

Description

Oleodinamica 2MP SVCP-S10-TD4-N-0-000 is a two-way, two-position solenoid cartridge. It is normally open, with double-poppet construction, NBR seals and no manual override.

When de-energized, flow is open in both directions. Energizing blocks both flow directions.

The cartridge has a 7/8-14 UNF mounting thread and a C035 cavity.

This execution is supplied without a coil. Select a compatible coil and connector for the application.

Full specifications

Technical specifications
Product type Solenoid-operated cartridge valve
Operating principle Pilot-operated
Nominal flow (l/min) 70
Mounting Screw-in cartridge
Cartridge cavity C035
Coil supply Without coil (000 voltage field)
Manual override None
Manufacturer Oleodinamica 2MP
Manufacturer part number SVCP-S10-TD4-N-0-000
Poppet arrangement Double poppet
Rest position Normally open
Technical specifications
Number of ways 2
Number of positions 2
Actuation Solenoid
Cartridge thread 7/8-14 UNF
Technical specifications
Maximum working pressure (bar) 350
Technical specifications
Seal material NBR
