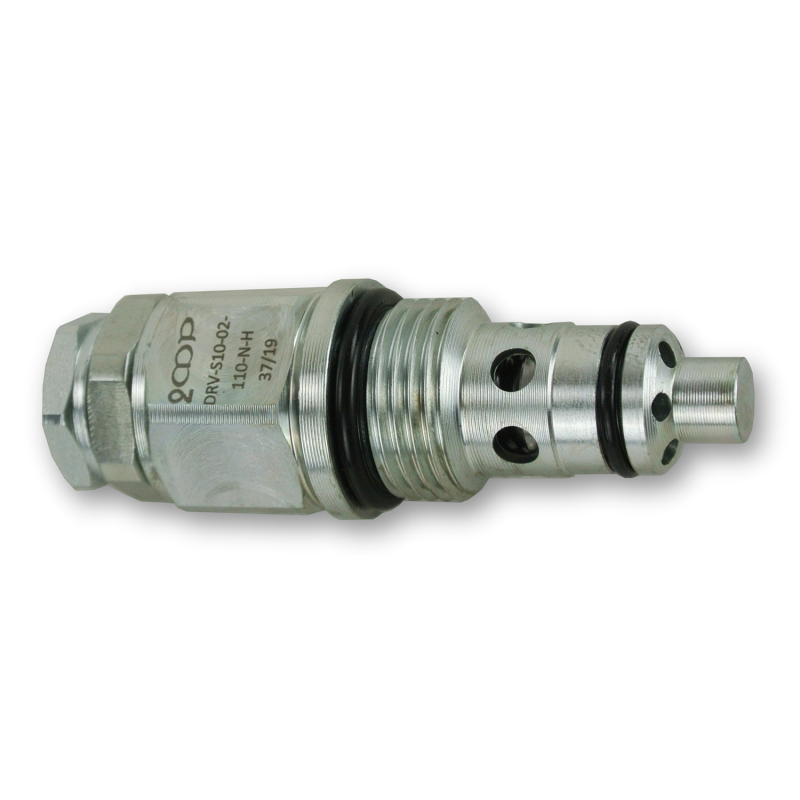

Oleodinamica 2MP DRV-S10-02-110-N-H direct-acting cartridge relief valve

Oleodinamica 2MP DRV-S10-02-110-N-H is a direct-acting screw-in pressure relief cartridge in the DRV-S10-02 family.

It has NBR seals, hexagonal-head screw adjustment, a C035 cavity and 7/8 inch-14 UNF mounting thread. Maximum pressure is 350 bar and nominal flow is 80 L/min.

Flow opens from port 1 to port 2 when inlet pressure exceeds the spring setting. This cartridge is supplied without an optional in-line housing. Confirm the required spring adjustment range and delivered pressure setting before use.
