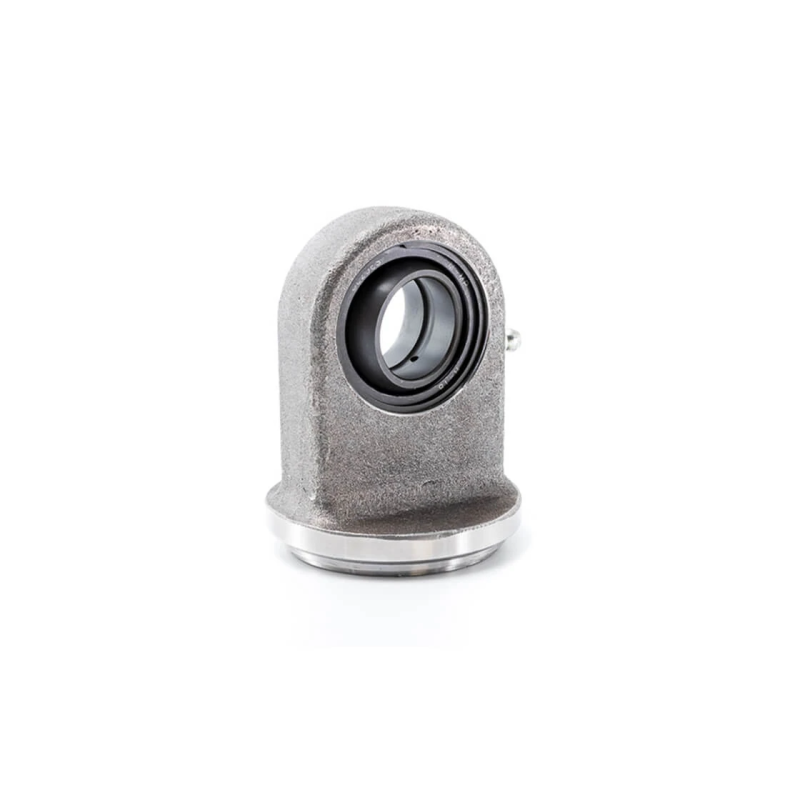

Naldoni e Biondi NBSN30PF63 weld-on spherical cylinder end with end plug

Naldoni e Biondi NBSN30PF63 is a complete SN-PF spherical cylinder-end component with an integrated end plug. The construction includes the spherical insert within the end housing and its end-plug mounting base. The component is intended for weld-on cylinder-end mounting. It is not a loose bearing, bare fixed eye or threaded rod end.

Production material designation: S355 steel. Bearing contact: steel on steel. This execution is lubricatable. The insert steel grade is not separately specified. Dimension A is the bearing bore and G is the overall height. Other dimensions retain the dimensional drawing labels. No pressure rating, welded-assembly capacity, compatibility or numerical dynamic/static load is specified.

Available on request, subject to a minimum order batch.
