U-shaped weldable cylinder fork
Naldoni e Biondi NBFS00000016 weldable U-shaped cylinder fork
Model: NBFS00000016 · Naldoni e Biondi
Pin bore diameter A (mm)16.2
MountingWeld-on
MaterialSteel S235JR

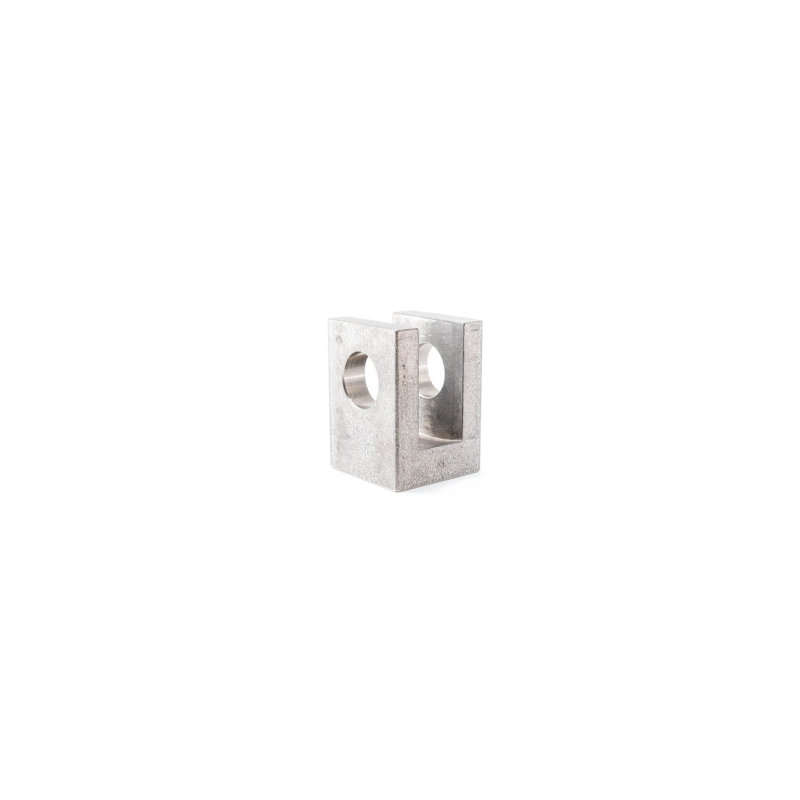

Naldoni e Biondi NBFS00000016 is a U-shaped weldable fork for hydraulic-cylinder fabrication, made of steel S235JR. Its two parallel ears have a 16.2 mm pin bore A and a 16 mm internal fork opening G. H is the square base size, B the overall height, C the base-to-bore-centre distance and E the top-to-bore-centre distance. See dimension D in the technical drawing.
This is the weldable NBFS fork, not the adjacent NBFFIL threaded fork or a single-eye NBAFSF terminal. No structural load, fatigue, pin-fit tolerance, welding procedure or cylinder pressure rating is specified.
| Technical specifications | |
| Product type | U-shaped weldable cylinder fork |
| Pin bore diameter A (mm) | 16.2 |
| Mounting | Weld-on |
| Material | Steel S235JR |
| Base-to-bore-centre C (mm) | 34 |
| Fork opening G (mm) | 16 |
| Manufacturer | Naldoni e Biondi |
| Manufacturer part number | NBFS00000016 |
| Product family | NBFS |
| Top-to-bore-centre E (mm) | 16 |
| Catalogue dimension D (mm) | 24 |
| Mass (kg) | 0.26 |
| Overall height B (mm) | 50 |
| Square base size H (mm) | 35 |
