Naldoni e Biondi NBFFIL252420 female-threaded cylinder fork end

Naldoni e Biondi NBFFIL252420 is an NBFFIL threaded fork for a hydraulic cylinder rod connection. The manufacturer drawing shows a two-ear clevis with an internal metric mounting thread, M24 × 2. The selected supplier identifies this exact article as a threaded fork rod end with an internal thread.

Dimension A is the pin-hole bore, 25.25 mm, and G is the fork opening, 25 mm. The square base dimension H is 50 mm. Other dimensions retain the original drawing letters. The manufacturer gives S235JR steel as the production-material designation; no independent material certificate is established.

The complete article number is printed in the original manufacturer table and in the selected supplier manufacturer-article-number field. Every listed dimension, thread and mass agrees with the selected stock row. The supplier brand field is blank (--); this identifies an offered article designation without independently authenticating a supplied Naldoni unit. No stock, delivery, pressure, assembly load, supplied pin, ISO conformity or mating-part compatibility is assigned.

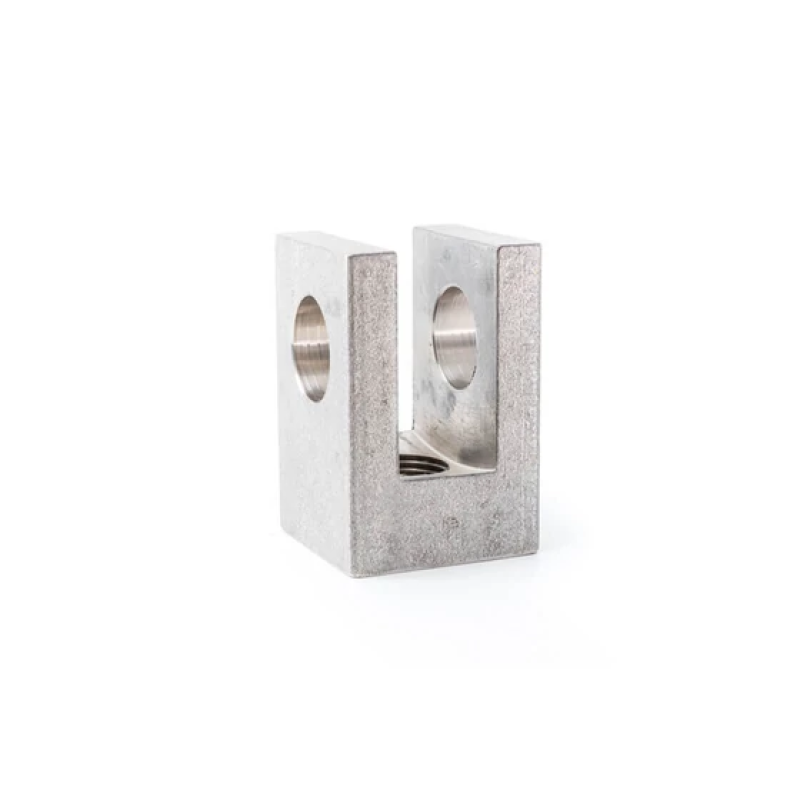

The genuine supplier photograph represents the threaded-fork family and is shared across sizes. It does not certify exact dimensions, material grade, finish or supplied revision. The local PDF contains the complete original manufacturer page; NBFFIL is the lower threaded-fork section, separate from the upper weldable NBFS family.
