Swinging ball-and-socket cylinder end
Naldoni e Biondi NBBAOS060000 hydraulic cylinder swinging ball-and-socket end
Model: NBBAOS060000 · Naldoni e Biondi
ConstructionComplete swinging-end joint assembly

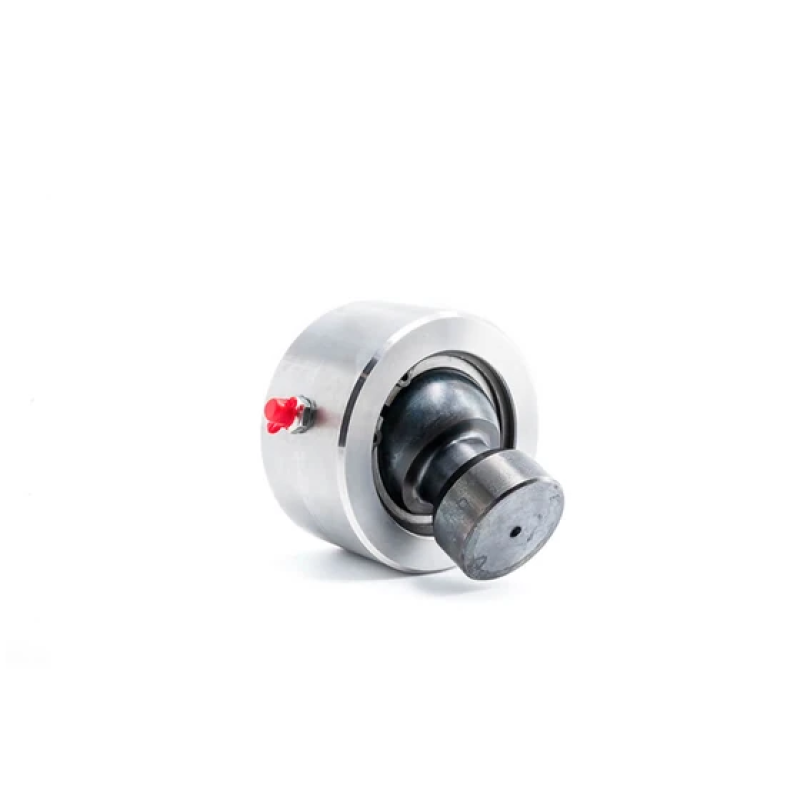

Naldoni e Biondi NBBAOS060000 is a hydraulic cylinder swinging ball-and-socket end in the NBBAOS family. This is the complete articulated end assembly including the ball and socket base, rather than a plain weld-on eye or a separate bearing insert. A denotes the spherical diameter, B the base outside diameter, C overall height and E the shank diameter. Dimension D retains its dimensional drawing label. Material designations: C45 / 080M46. Material equivalence is not specified. No pin-bore, load capacity or articulation angle is specified.
No whole-cylinder pressure or structural rating is specified.
| Technical specifications | |
| Product type | Swinging ball-and-socket cylinder end |
| Construction | Complete swinging-end joint assembly |
| Material documentation reference | Italian manufacturer text: steel C45; English manufacturer text: steel 080M46. Both original designations are retained; no independent material equivalence certification. |
| Manufacturer | Naldoni e Biondi |
| Manufacturer part number | NBBAOS060000 |
| Product family | NBBAOS |
| Base outside diameter B (mm) | 98 |
| Catalogue dimension D (mm) | 25 |
| Mass (kg) | 3.45 |
| Overall height C (mm) | 100 |
| Shank diameter E (mm) | 50 |
| Spherical diameter A (mm) | 60 |
