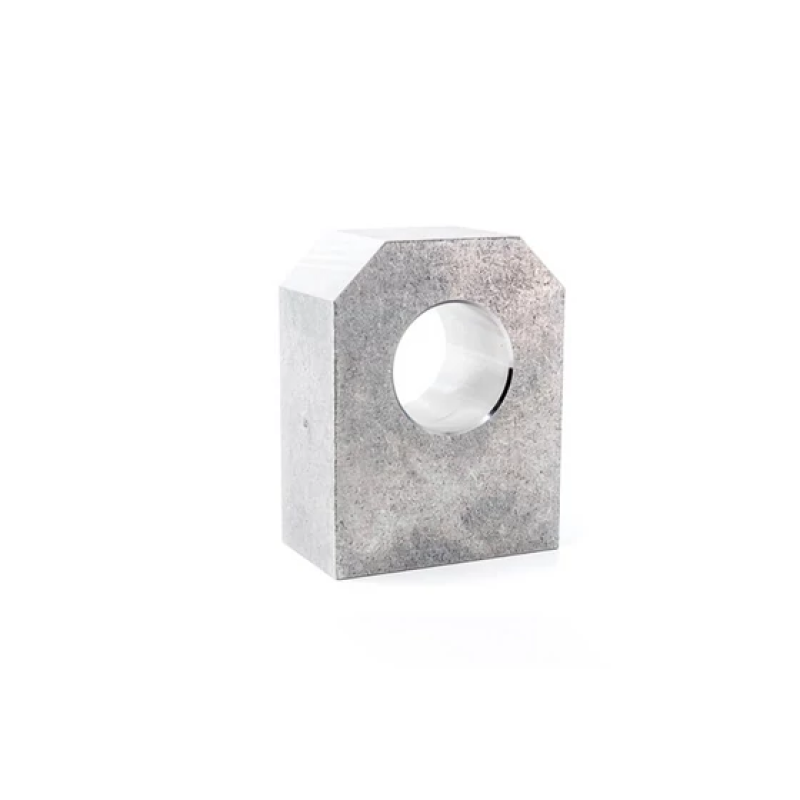

Naldoni e Biondi NBAFSF000030 is a weld-on fixed eye terminal for cylinder clevis in the NBAFSF family. This S235JR steel terminal is a single fixed eye intended to mate with a fork/clevis in a fabricated cylinder mounting. It is not the U-shaped clevis itself and contains no spherical bearing. A is the clearance pin-hole diameter. B, C, D and E retain the corresponding drawing dimensions. No grease fitting, mating pin, weld procedure or load capacity is specified.
No whole-cylinder pressure or structural rating is specified.
