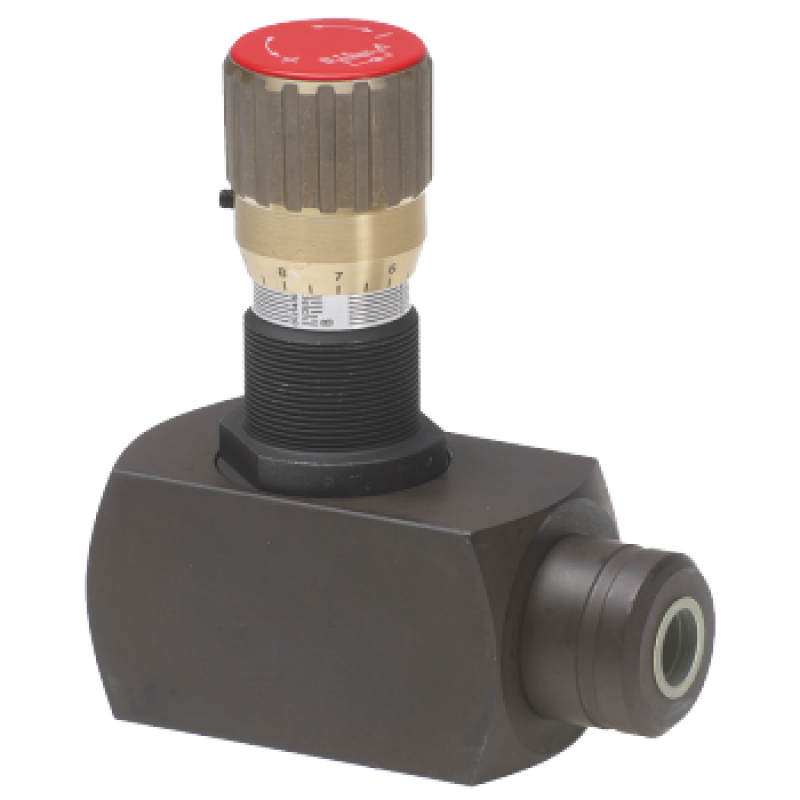

Unidirectional pressure compensated flow restrictor valve 320 BAR FT2775U08
Model: FT2775U08
Maximum pressure (bar)320
Port 1 thread1/2" BSP
Unidirectional pressure compensated flow restrictor valve 320 BAR FT2775U08. The valve routes fluid through the circuit. Match its actuation and port arrangement to the application.
Model specifications: Maximum pressure (bar): 320.
Unidirectional pressure compensated flow restrictor valve 320 BAR. The exact model is confirmed by the primary product record. This PDF covers the product family; model-specific values are not independently confirmed by this document.
| Technical specifications | |
| Component type | Valve |
| Maximum pressure (bar) | 320 |
| Port 1 thread | 1/2" BSP |
| Equipment family | Flow control valves |
| Original specifications - unverified | |
| Max. pressure, bar | 320 |
| Flow max, l/min | 65 |
| R1 | 1/2'' BS |
| R2 | M40X1,5 |
| Filtration degree | 25 |
| B | 15,5 |
| C | 136 |
| D | 150 |
| E | 38 |
| G | 28,5 |
| L | 6,5 |
| ØA | Ø47 |
