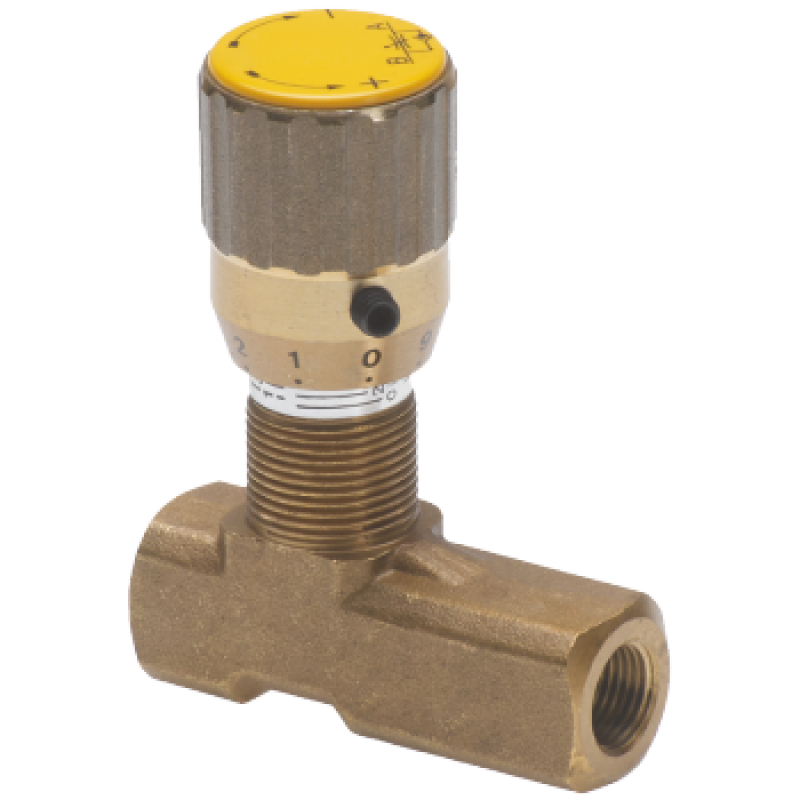

Unidirectional flow restrictor valve- Fine Adjustment FT12375U02
Model: FT12375U02
Maximum pressure (bar)210
Port 1 thread1/8" BSP
Unidirectional flow restrictor valve- Fine Adjustment FT12375U02. The valve routes fluid through the circuit. Match its actuation and port arrangement to the application.
Model specifications: Maximum pressure (bar): 210.
Unidirectional flow restrictor valve- Fine Adjustment. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Valve |
| Maximum pressure (bar) | 210 |
| Port 1 thread | 1/8" BSP |
| Equipment family | Flow control valves |
| Original specifications - unverified | |
| Max. pressure, bar | 210 |
| Flow max, l/min | 2,2 |
| R1 | 1/8'' BS |
| R2 | M15X1 |
| Filtration degree | 25 |
| B | 8 |
| C | 46,5 |
| D | 55 |
| E | 4 |
| G | 12 |
| L | 9,5 |
| ØA | Ø22 |
