Valve

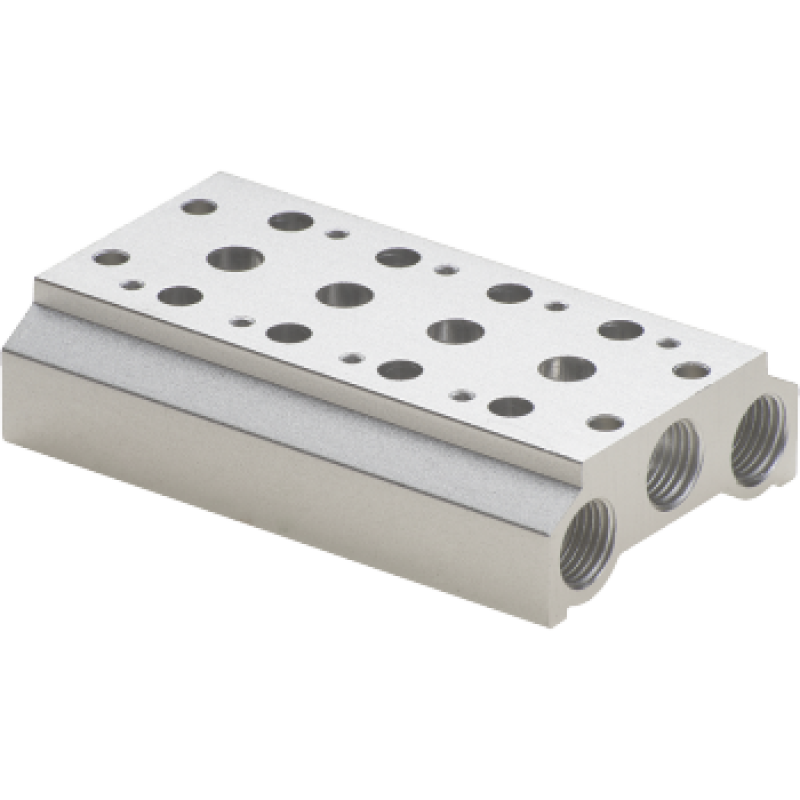

Subplates for pneumatic valves 3/2 NEU100800
Model: NEU100800
Port 1 thread1/8" BSP
Subplates for pneumatic valves 3/2 NEU100800. The valve routes fluid through the circuit. Match its actuation and port arrangement to the application.
Subplates for pneumatic valves 3/2. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Valve |
| Port 1 thread | 1/8" BSP |
| Equipment family | Electrical actuating |
| Original specifications - unverified | |
| R1 | 1/8'' BSP |
| Noofelements | 2 |
| A | 31 |
| B | 19 |
| C | 16 |
| D | 13 |
| E | 2 |
| F | 56 |
| G | 45,5 |
| H | 5,25 |
| I | 19,5 |
| J | 19 |
| K | 19 |
| M | 17,5 |
