Valve

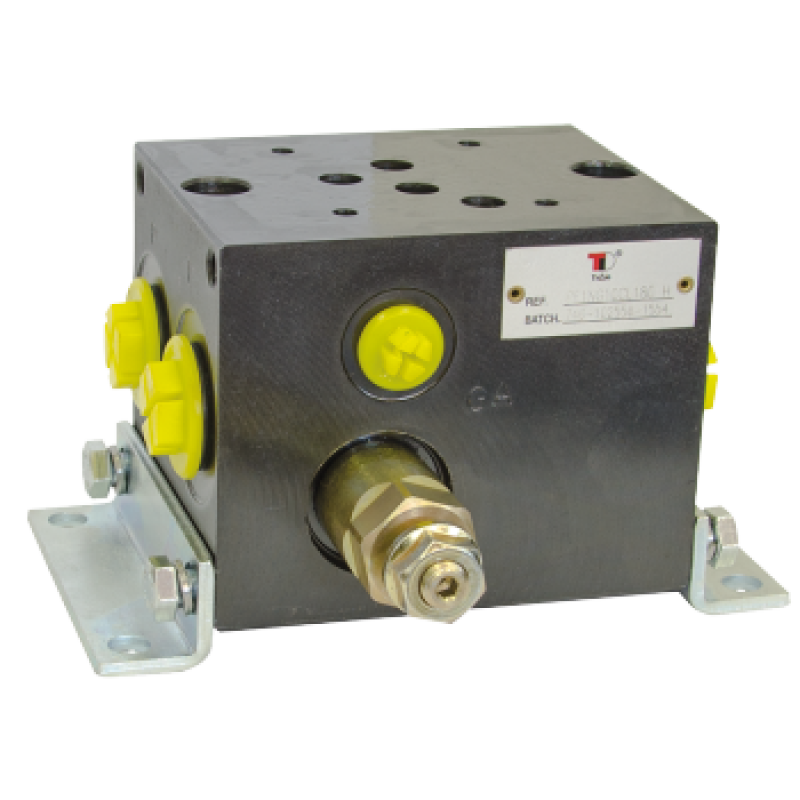

Subplate for NG10 directional valves, one element, with relief valve, A B side ports PF1NG10CL180 H
Model: PF1NG10CL180 H
Maximum pressure (bar)315
Port 1 thread1/2" BSP
Subplate for NG10 directional valves, one element, with relief valve, A B side ports PF1NG10CL180 H. The valve routes fluid through the circuit. Match its actuation and port arrangement to the application.
Model specifications: Maximum pressure (bar): 315.
Subplate for NG10 directional valves, one element, with relief valve, A B side ports. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Valve |
| Maximum pressure (bar) | 315 |
| Port 1 thread | 1/2" BSP |
| Equipment family | Subplates for NG10 |
| Original specifications - unverified | |
| Max. pressure, bar | 315 |
| Flow max, l/min | 80 |
| A-B | 1/2'' BSP |
| No directional valves | 1 |
| Reg.rate(bar) | 20-250 |
| Size | NG-10 |
