SMK-20-G3/8-B-W3 is a STAUFF Test 20 pressure-test coupling, factory material number 1210026073. It provides a measurement access point with an integrated ball valve. Its hydraulic installation port is 3/8" BSP, while the STAUFF Test 20 measurement coupling uses an M16x2 interface.
This article has a nitrile (NBR) seal, metal joint port sealing and a steel protective cap. The steel body has a zinc-nickel coating. The exact catalogue ordering row states a maximum working pressure of 630 bar; apply the compatible measurement hose, coupling and installation sealing specified for this execution.

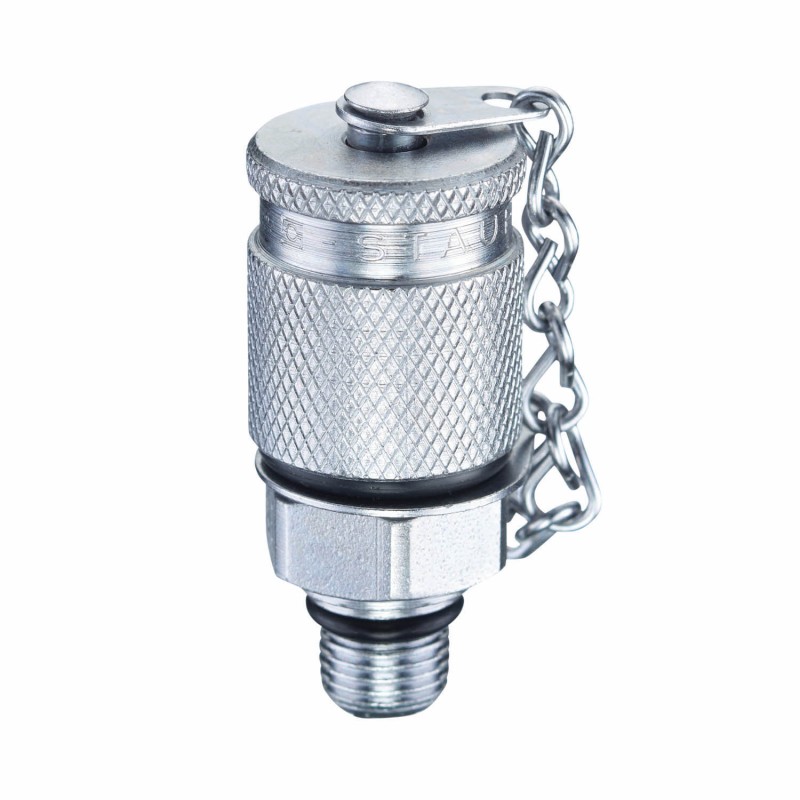

Illustration: manufacturer representative image; size and configuration may vary.
