FI-G-04LL-W3 is a STAUFF straight tube union supplied as the fitting body only, identified by factory material number 6030003241. Both ends have a 24° inner cone for 4 mm outside-diameter tube in the extra-light 04LL series. The fitting is steel with a zinc-nickel surface coating.
The catalogue lists a connection nominal pressure PN of 100 bar for this tube-size and series row. Select and assemble the mating tube and connecting parts to the applicable manufacturer specification. Cutting rings and union nuts are not included with this body-only article.

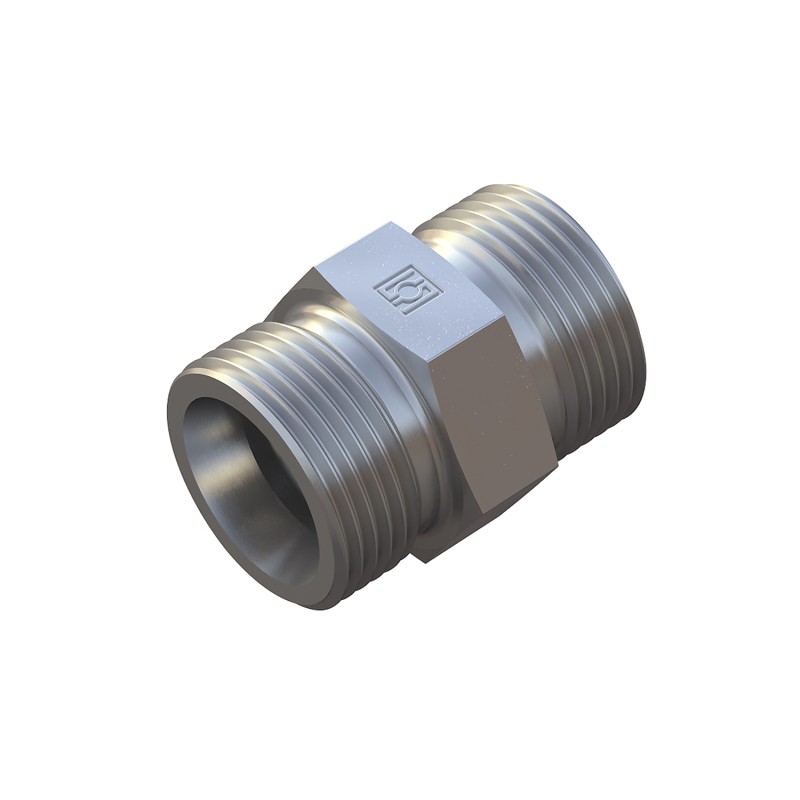

Illustration: manufacturer representative image; size and configuration may vary.
