Tube fitting

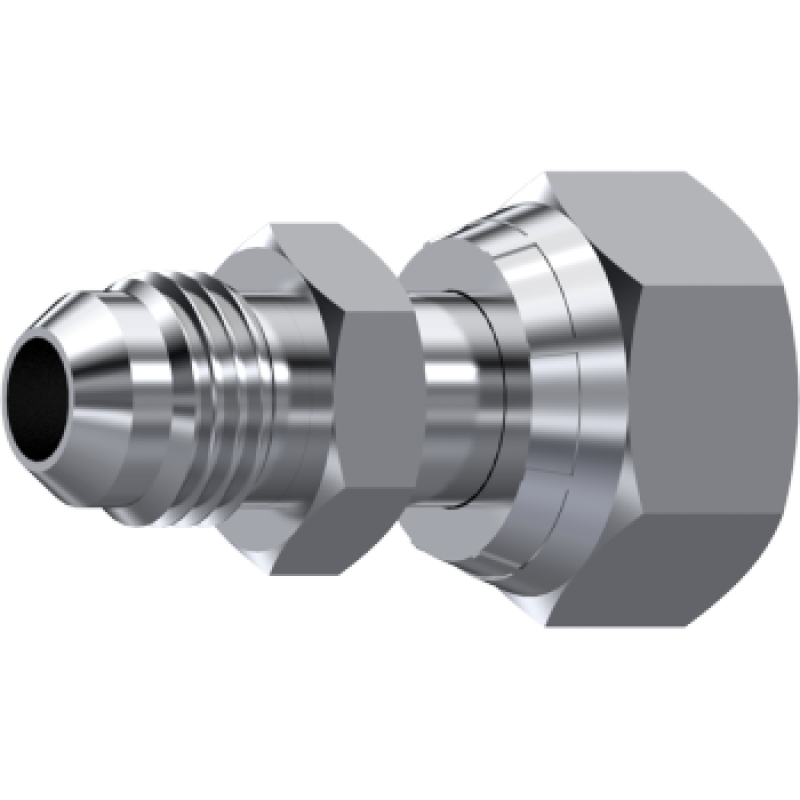

Stainless Steel JIC Male - ORFS Swivel female ZOR3051212

Model: ZOR3051212
Thread standardBSP
MaterialStainless steel AISI 316-L

Description

ZOR3051212 is a jic male - orfs swivel female. The technical family heading specifies Stainless steel AISI 316-L. This fitting connects the mating fluid-line components identified by its catalogue connection form. Match each port thread and seating interface independently.

Port 1 thread: JIC 1 1/16" BSP.

Full specifications

Technical specifications
Component type Tube fitting
Thread standard BSP
Port 1 thread JIC 1 1/16" BSP
Catalog port 2 thread designation ORFS 1"3/16-12 h
Material Stainless steel AISI 316-L
Connection family ORFS
Documentation status Exact model documented
