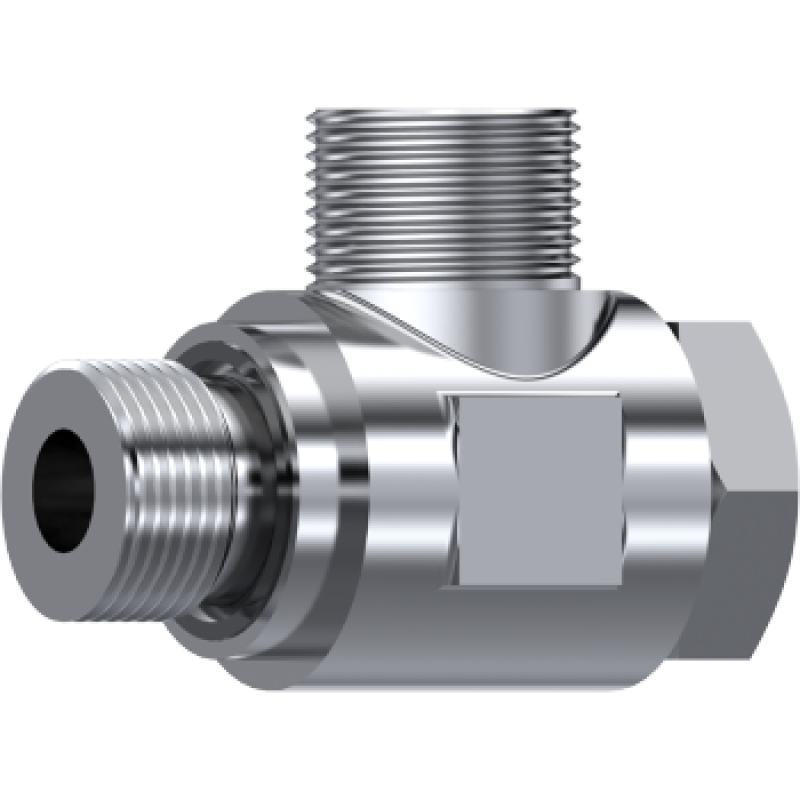

Stainless Steel DIN 2353 Banjo coupling with captive seal and o.ring BSP cylindrical only body Z STA WSVS 25 R 1
Click image to enlarge
Tube fitting

Stainless Steel DIN 2353 Banjo coupling with captive seal and o.ring BSP cylindrical only body Z STA WSVS 25 R 1
Model: Z STA WSVS 25 R 1
  • Model:
    Z STA WSVS 25 R 1
Working pressure (bar)400
Thread standardBSP
MaterialStainless steel AISI 316-L
Full specifications ↓ Technical catalog · PDF

Description

Z STA WSVS 25 R 1 is a banjo coupling with captive seal and o.ring bsp cylindrical only body. The technical family heading specifies Stainless steel AISI 316-L. This fitting connects the mating fluid-line components identified by its catalogue connection form. Match each port thread and seating interface independently.

Port 1 thread: 1" BSP; Working pressure (bar): 400.

Full specifications

Technical specifications
Component type Tube fitting
Working pressure (bar) 400
Thread standard BSP
Port 1 thread 1" BSP
Material Stainless steel AISI 316-L
Connection family DIN 2353
Documentation status Exact model documented
Series S
Supplied form Body only (without nut and cutting ring)
