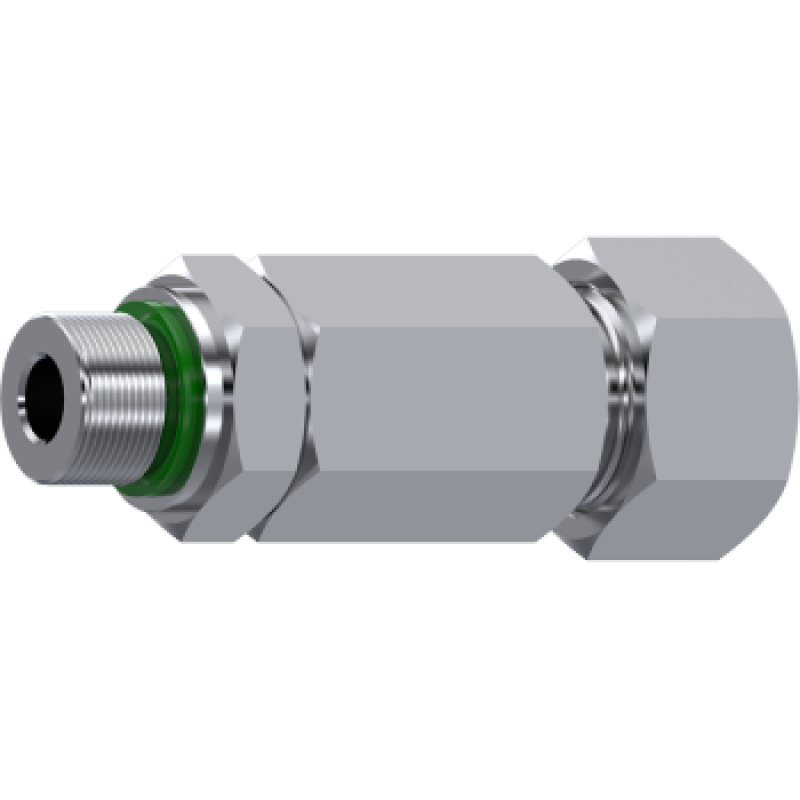

Stainless Steel DIN 2353 Non-return valve flow towards male stud end BSP cylidrical Z RHZL 15 R 1/2
Click image to enlarge
Check valve

Stainless Steel DIN 2353 Non-return valve flow towards male stud end BSP cylidrical Z RHZL 15 R 1/2
Model: Z RHZL 15 R 1/2
  • Model:
    Z RHZL 15 R 1/2
Working pressure (bar)315
Thread standardBSP
MaterialStainless steel AISI 316-L
Full specifications ↓ Technical catalog · PDF

Description

Z RHZL 15 R 1/2 is a non-return valve flow towards male stud end bsp cylidrical. The technical family heading specifies Stainless steel AISI 316-L. This valve allows flow in the direction stated by the catalogue connection form. Check the flow arrow and mating connections in the drawing.

Port 1 thread: 1/2" BSP; Working pressure (bar): 315.

Full specifications

Technical specifications
Component type Check valve
Working pressure (bar) 315
Thread standard BSP
Port 1 thread 1/2" BSP
Material Stainless steel AISI 316-L
Connection family DIN 2353
Documentation status Exact model documented
Series L
