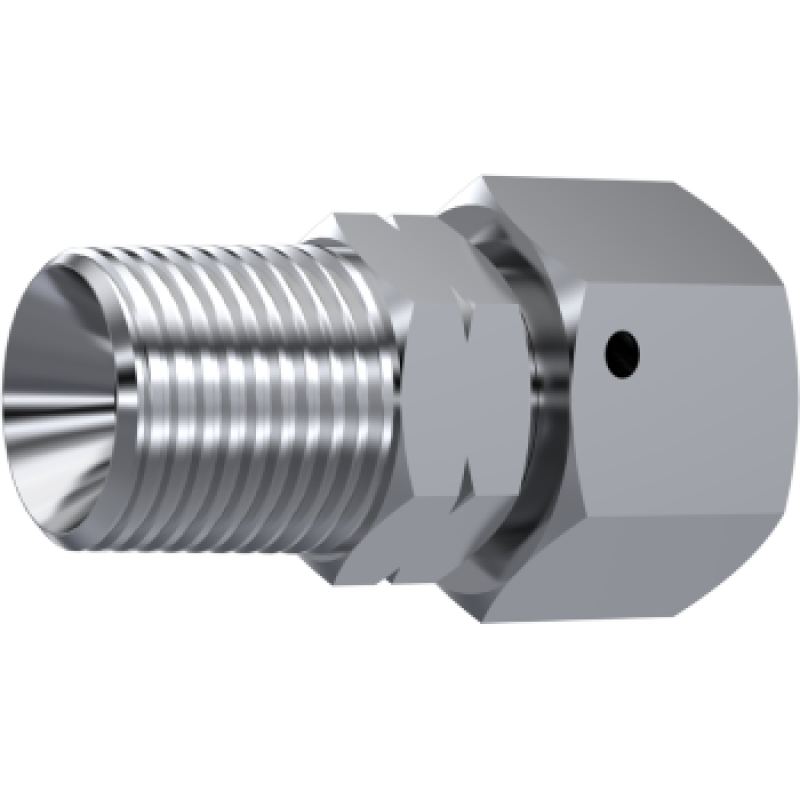

Stainless Steel DIN 2353 Straight stud standpipe adaptor NPT- metric swivel fem. Z RAL 28 R 1 NPTTLM
Click image to enlarge
Tube fitting

Stainless Steel DIN 2353 Straight stud standpipe adaptor NPT- metric swivel fem. Z RAL 28 R 1 NPTTLM
Model: Z RAL 28 R 1 NPTTLM
  • Model:
    Z RAL 28 R 1 NPTTLM
Working pressure (bar)160
Thread standardNPT
MaterialStainless steel AISI 316-L
Full specifications ↓ Technical catalog · PDF

Description

Z RAL 28 R 1 NPTTLM is a straight stud standpipe adaptor npt- metric swivel fem.. The technical family heading specifies Stainless steel AISI 316-L. This fitting connects the mating fluid-line components identified by its catalogue connection form. Match each port thread and seating interface independently.

Port 1 thread: 1"NPT; Working pressure (bar): 160.

Full specifications

Technical specifications
Component type Tube fitting
Working pressure (bar) 160
Thread standard NPT
Port 1 thread 1"NPT
Material Stainless steel AISI 316-L
Connection family DIN 2353
Documentation status Exact model documented
