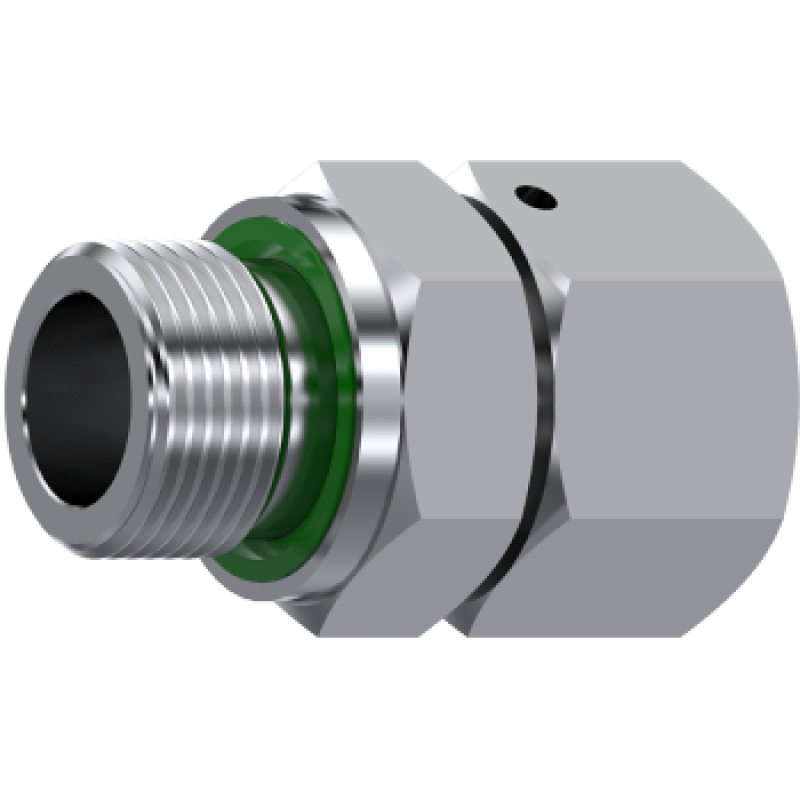

Stainless Steel DIN 2353 Straight stud standpipe adaptor Metric with captive seal-metric swivel fem. Z RAL 28M33X2TLMWD
Click image to enlarge
Tube fitting

Stainless Steel DIN 2353 Straight stud standpipe adaptor Metric with captive seal-metric swivel fem. Z RAL 28M33X2TLMWD
Model: Z RAL 28M33X2TLMWD
  • Model:
    Z RAL 28M33X2TLMWD
Working pressure (bar)160
Thread standardMetric
MaterialStainless steel AISI 316-L
Full specifications ↓ Technical catalog · PDF

Description

Z RAL 28M33X2TLMWD is a straight stud standpipe adaptor metric with captive seal-metric swivel fem.. The technical family heading specifies Stainless steel AISI 316-L. This fitting connects the mating fluid-line components identified by its catalogue connection form. Match each port thread and seating interface independently.

Port 1 thread: M33×2; Working pressure (bar): 160.

Full specifications

Technical specifications
Component type Tube fitting
Working pressure (bar) 160
Thread standard Metric
Port 1 thread M33×2
Material Stainless steel AISI 316-L
Connection family DIN 2353
Documentation status Exact model documented
Series L
