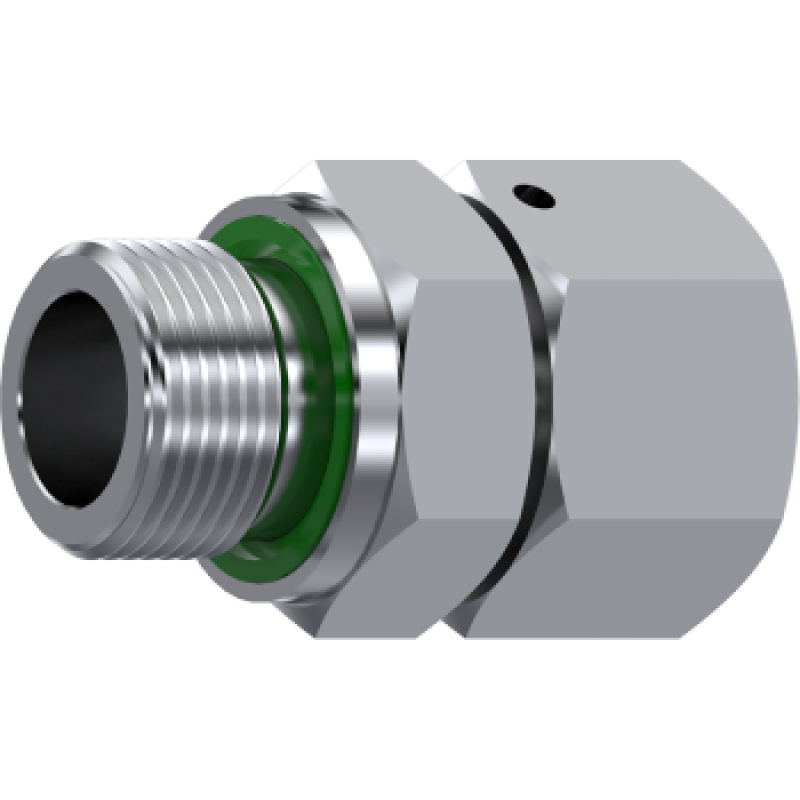

Stainless Steel DIN 2353 Straight stud standpipe adaptor with captive seal BSP cylindrical-metric swivel fem. Z RAL 12 R 1/2TLMWD
Click image to enlarge
Tube fitting

Stainless Steel DIN 2353 Straight stud standpipe adaptor with captive seal BSP cylindrical-metric swivel fem. Z RAL 12 R 1/2TLMWD
Model: Z RAL 12 R 1/2TLMWD
  • Model:
    Z RAL 12 R 1/2TLMWD
Working pressure (bar)315
Thread standardBSP
MaterialStainless steel AISI 316-L
Full specifications ↓ Technical catalog · PDF

Description

Z RAL 12 R 1/2TLMWD is a straight stud standpipe adaptor with captive seal bsp cylindrical-metric swivel fem.. The technical family heading specifies Stainless steel AISI 316-L. This fitting connects the mating fluid-line components identified by its catalogue connection form. Match each port thread and seating interface independently.

Port 1 thread: 1/2"BSP; Working pressure (bar): 315.

Full specifications

Technical specifications
Component type Tube fitting
Working pressure (bar) 315
Thread standard BSP
Port 1 thread 1/2"BSP
Material Stainless steel AISI 316-L
Connection family DIN 2353
Documentation status Exact model documented
Series L
