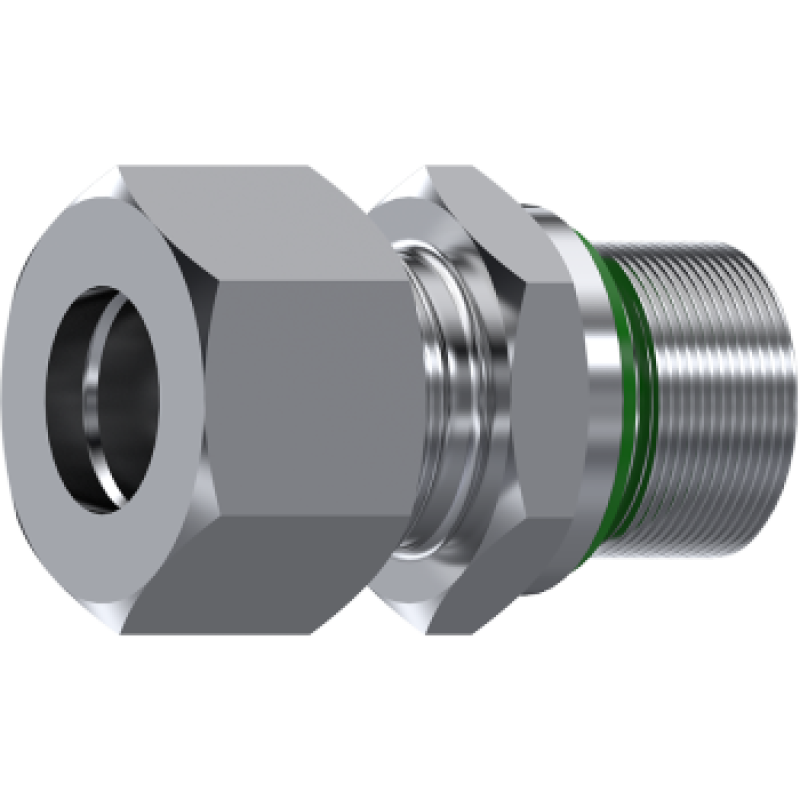

Stainless Steel DIN 2353 Straight male stud coupling Metric cylindrical with captive seal Z AS 20 M 27X2 WD
Click image to enlarge
Tube fitting

Stainless Steel DIN 2353 Straight male stud coupling Metric cylindrical with captive seal Z AS 20 M 27X2 WD
Model: Z AS 20 M 27X2 WD
  • Model:
    Z AS 20 M 27X2 WD
Working pressure (bar)400
Thread standardMetric
MaterialStainless steel AISI 316-L
Full specifications ↓ Technical catalog · PDF

Description

Z AS 20 M 27X2 WD is a straight male stud coupling metric cylindrical with captive seal. The technical family heading specifies Stainless steel AISI 316-L. This fitting connects the mating fluid-line components identified by its catalogue connection form. Match each port thread and seating interface independently.

Port 1 thread: M27×2; Working pressure (bar): 400.

Full specifications

Technical specifications
Component type Tube fitting
Working pressure (bar) 400
Thread standard Metric
Port 1 thread M27×2
Material Stainless steel AISI 316-L
Connection family DIN 2353
Documentation status Exact model documented
Series S
