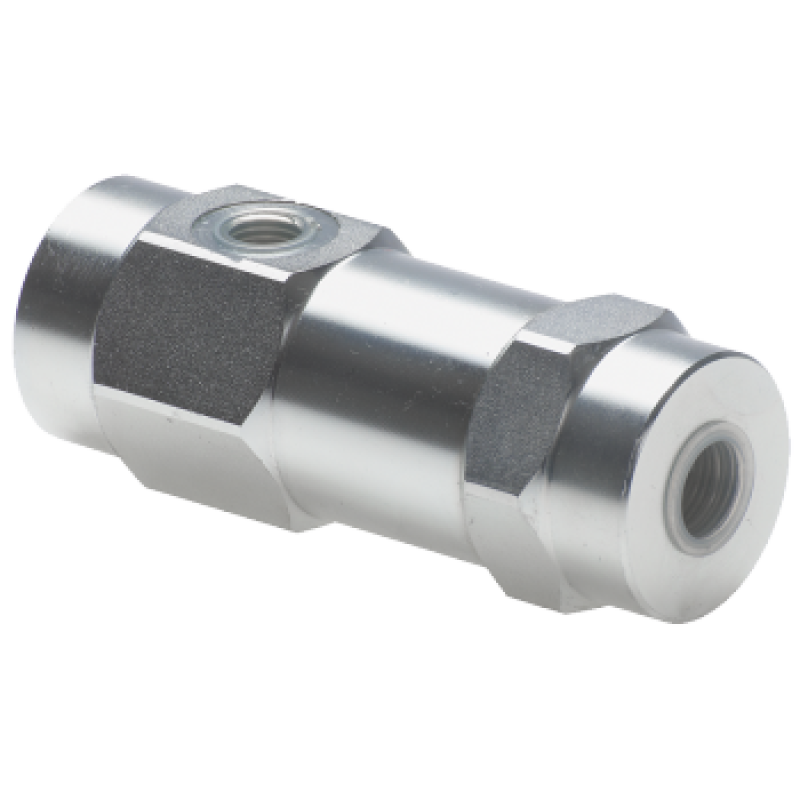

Single pilot operated check valve - line mounted FPS 1/2
Model: FPS 1/2
Single pilot operated check valve - line mounted FPS 1/2. The valve controls reverse flow through the stated connection arrangement.
Single pilot operated check valve - line mounted. Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.
| Technical specifications | |
| Component type | Valve |
| Equipment family | Check-valves |
| Original specifications - unverified | |
| Max. pressure, bar | 350 |
| Flow max, l/min | 45 |
| R1 | 1/2'' BSP |
| R2 | 1/4'' BSP |
| Pilotratio | 1 : 4,5 |
| B | 42 |
| E | 11 |
| L | 120 |
