Check valve

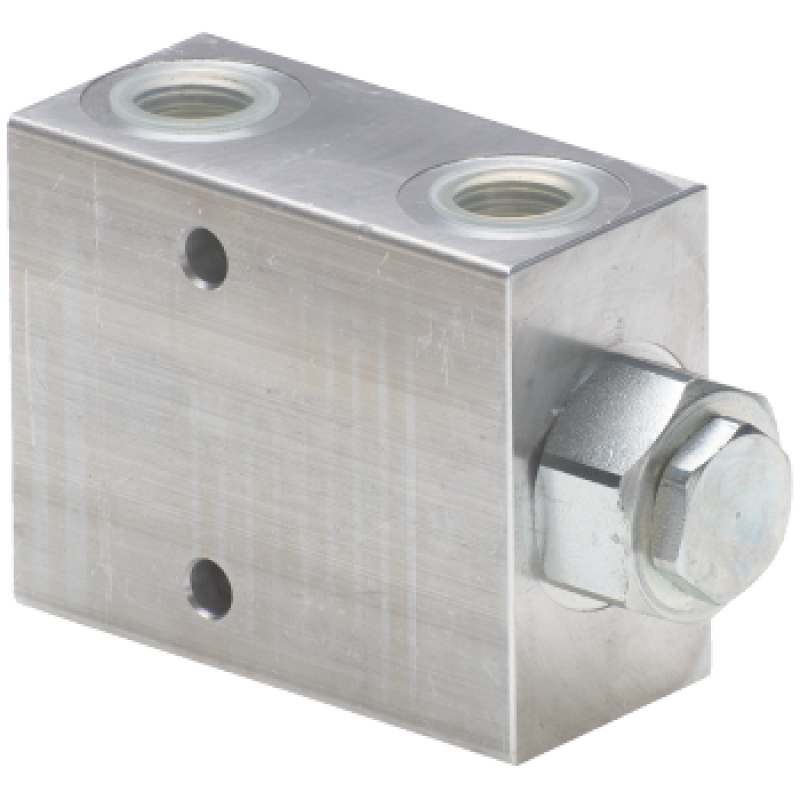

Single pilot operated check valve in block VT004008

Model: VT004008
Maximum pressure (bar)250
Port 1 thread1/2" BSP

Description

Single pilot operated check valve in block VT004008. The valve controls reverse flow through the stated connection arrangement.

Model specifications: Maximum pressure (bar): 250.

Technical documentation

Single pilot operated check valve in block. The exact model is listed on page 1.

Full specifications

Technical specifications
Component type Check valve
Maximum pressure (bar) 250
Port 1 thread 1/2" BSP
Equipment family Check valves
Original specifications - unverified
Max. pressure, bar 250
Flow max, l/min 45
R1 1/2'' BSP
Pilotratio 1 : 3.5
A 95
B 70
D 35
F 55
G 21
H 38
I 19
L 40
M 15
ØN 8,5
