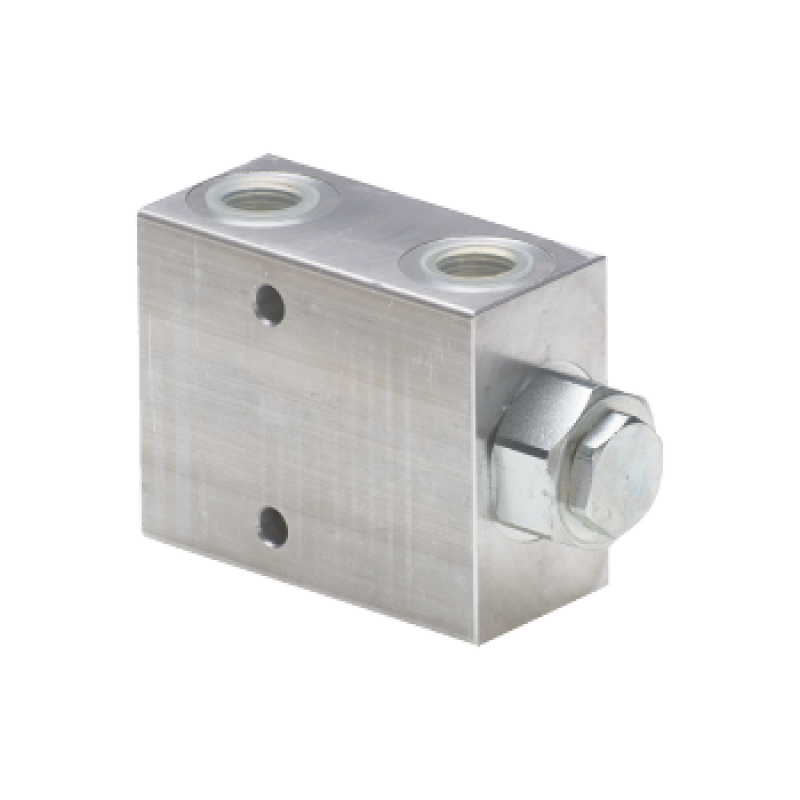

Single pilot check valve -block- line FPSL 3/8
Model: FPSL 3/8
Single pilot check valve -block- line FPSL 3/8. The valve controls reverse flow through the stated connection arrangement.
Single pilot check valve -block- line. Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.
| Technical specifications | |
| Component type | Valve |
| Equipment family | Check-valves |
| Original specifications - unverified | |
| Max. pressure, bar | 250 |
| Flow max, l/min | 25 |
| R1 | 3/8'' BSP |
| Pilotratio | 1:7 |
| A | 75 |
| B | 60 |
| D | 35 |
| F | 45 |
| G | 14 |
| H | 29 |
| I | 14 |
| L | 40 |
| M | 18,5 |
| ØN | 6,5 |
