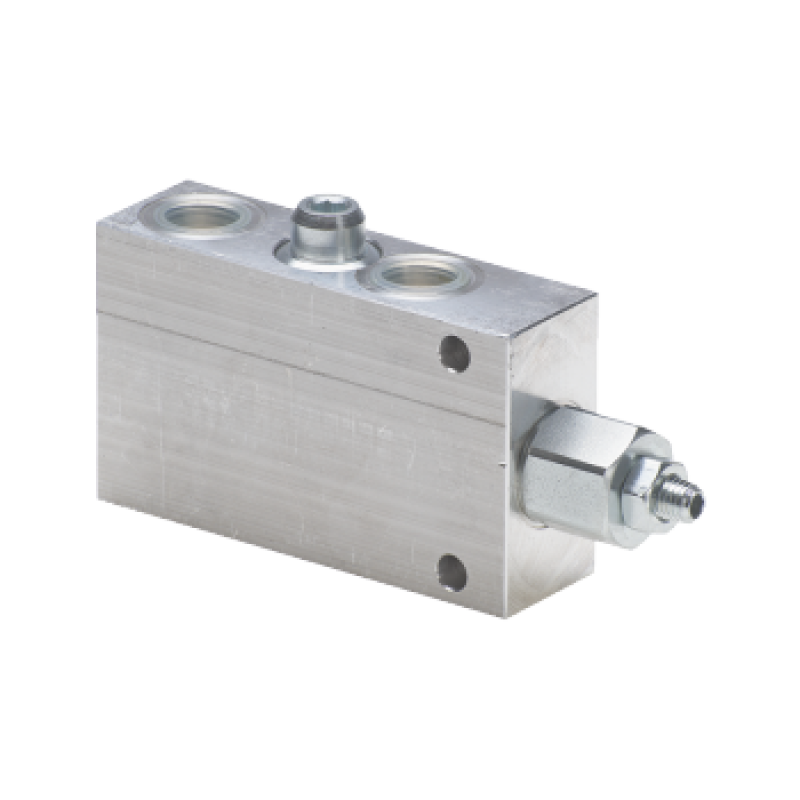

Single acting overcenter valve FPOE70S1/2LPA20 (1/2'' BSP, 70l/min)
Click image to enlarge

Single acting overcenter valve FPOE70S1/2LPA20 (1/2'' BSP, 70l/min)
Model: FPOE70S1/2LPA20
  • Model:
    FPOE70S1/2LPA20
Maximum pressure (bar)350
Maximum flow (L/min)70
Valve functionSingle-acting overcenter valve with internal pilot
Port connection1/2" BSP
Full specifications ↓ Technical catalog · PDF

Description

The FPOE70S1/2LPA20 is a single-acting overcenter valve with internal pilot. The official exact-model entry lists maximum flow 70 L/min, maximum pressure 350 bar, valve setting 200 bar.

Documentation: DICSA. Technical documentation: verification pending. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Technical documentation

Single acting overcenter internal pilot. Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.

Full specifications

Technical specifications
Maximum pressure (bar) 350
Maximum flow (L/min) 70
Port connection 1/2" BSP
Valve function Single-acting overcenter valve with internal pilot
Adjustment range (bar) 60–210
Adjustment minimum (bar) 60
Adjustment maximum (bar) 210
Valve setting (bar) 200
Original specifications — unverified
Press. increase(bar/turn) 56
