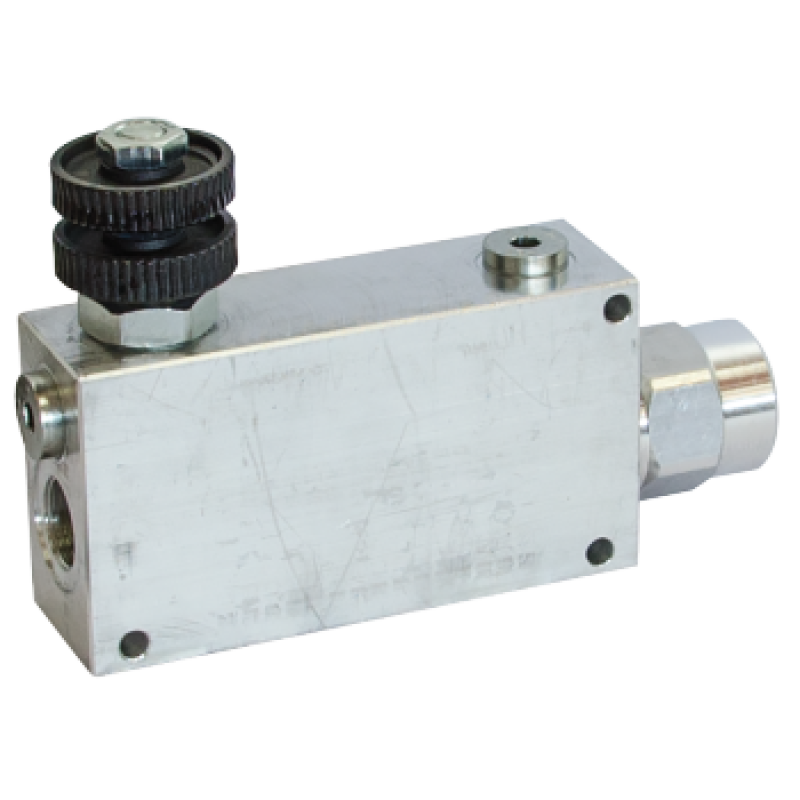

Single acting overcenter valve FPOE120S3/4LPA35 (3/4'' BSP, 120l/min)
Click image to enlarge

Single acting overcenter valve FPOE120S3/4LPA35 (3/4'' BSP, 120l/min)
Model: FPOE120S3/4LPA35
  • Model:
    FPOE120S3/4LPA35
Maximum pressure (bar)250
Maximum flow (L/min)120
Valve functionSingle-acting overcenter valve with internal pilot
Port connection3/4" BSP
Full specifications ↓ Technical catalog · PDF

Description

The FPOE120S3/4LPA35 is a single-acting overcenter valve with internal pilot. The official exact-model entry lists maximum flow 120 L/min, maximum pressure 250 bar.

Documentation: DICSA. Technical documentation: verification pending. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Some existing specifications differ from the referenced document; those values have been retained in the original fields pending revision confirmation.

Technical documentation

Single acting overcenter internal pilot 3/4... Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.

Full specifications

Technical specifications
Maximum pressure (bar) 250
Maximum flow (L/min) 120
Port connection 3/4" BSP
Valve function Single-acting overcenter valve with internal pilot
Adjustment range (bar) 120–350
Adjustment minimum (bar) 120
Adjustment maximum (bar) 350
Original specifications — unverified
Pilotratio 1:3.2
Press. increase(bar/turn) 90
Setting, bar 350

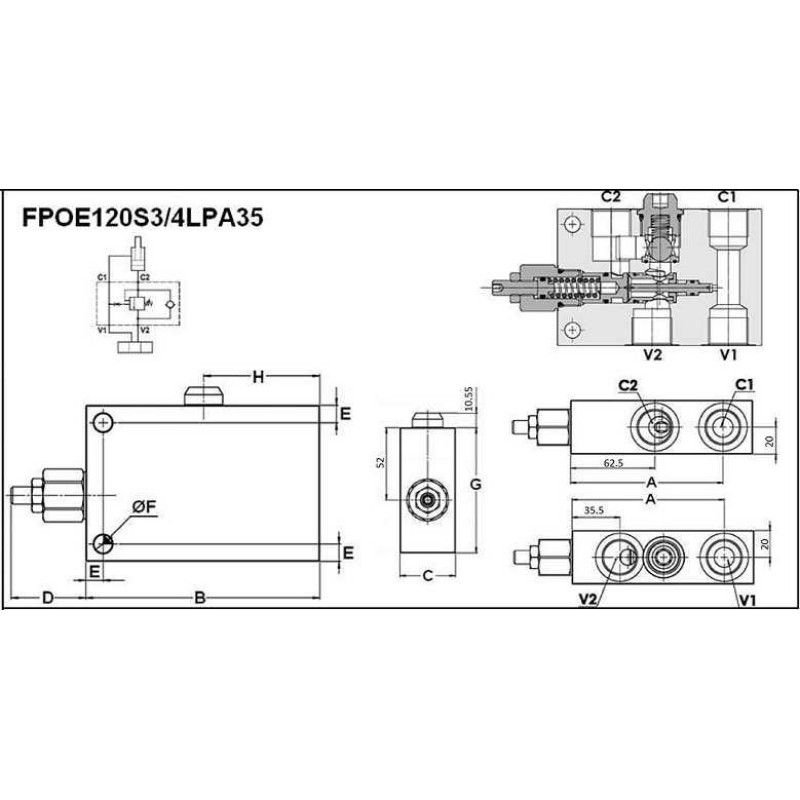

B 13
H 67
G 90
D 44
C 40
E 10
A 11
ØF 10,
