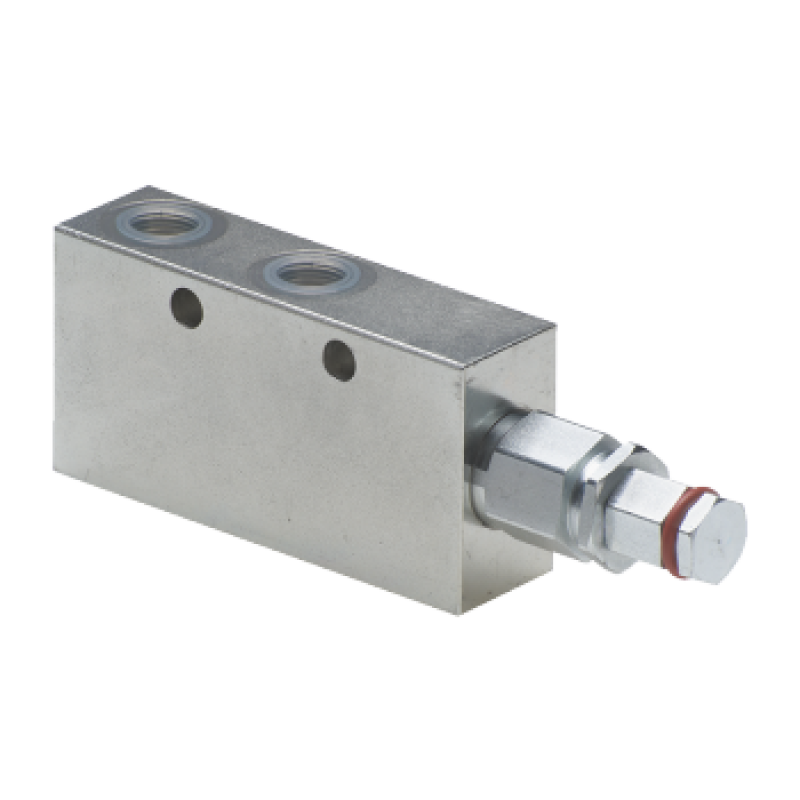

Single acting overcenter valve FPOB S 3/8 LP 35 (3/8'' BSP, 50l/min)
Click image to enlarge

Single acting overcenter valve FPOB S 3/8 LP 35 (3/8'' BSP, 50l/min)
Model: FPOB S 3/8 LP 35
  • Model:
    FPOB S 3/8 LP 35
Maximum pressure (bar)350
Maximum flow (L/min)50
Valve functionBalanced single-acting overcenter valve with internal pilot
Port connection3/8" BSP
Full specifications ↓ Technical catalog · PDF

Description

The FPOB S 3/8 LP 35 is a balanced single-acting overcenter valve with internal pilot. The official exact-model entry lists maximum flow 50 L/min, maximum pressure 350 bar, valve setting 280 bar.

Documentation: DICSA. technical reference , page 1. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Full specifications

Technical specifications
Maximum pressure (bar) 350
Maximum flow (L/min) 50
Port connection 3/8" BSP
Valve function Balanced single-acting overcenter valve with internal pilot
Catalog pilot ratio 1:4,25
Adjustment range (bar) 80–350
Adjustment minimum (bar) 80
Adjustment maximum (bar) 350
Valve setting (bar) 280
Original specifications — unverified
Press. increase(bar/turn) 120

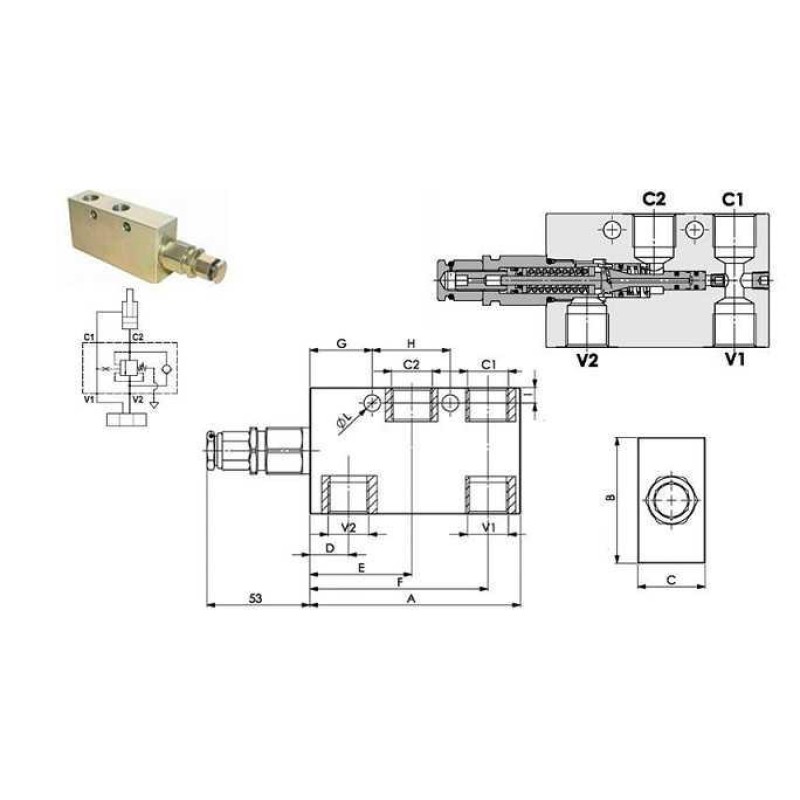

L 8,5
B 55
H 40
F 91
G 32
D 19,5
C 30
E 52
A 108
