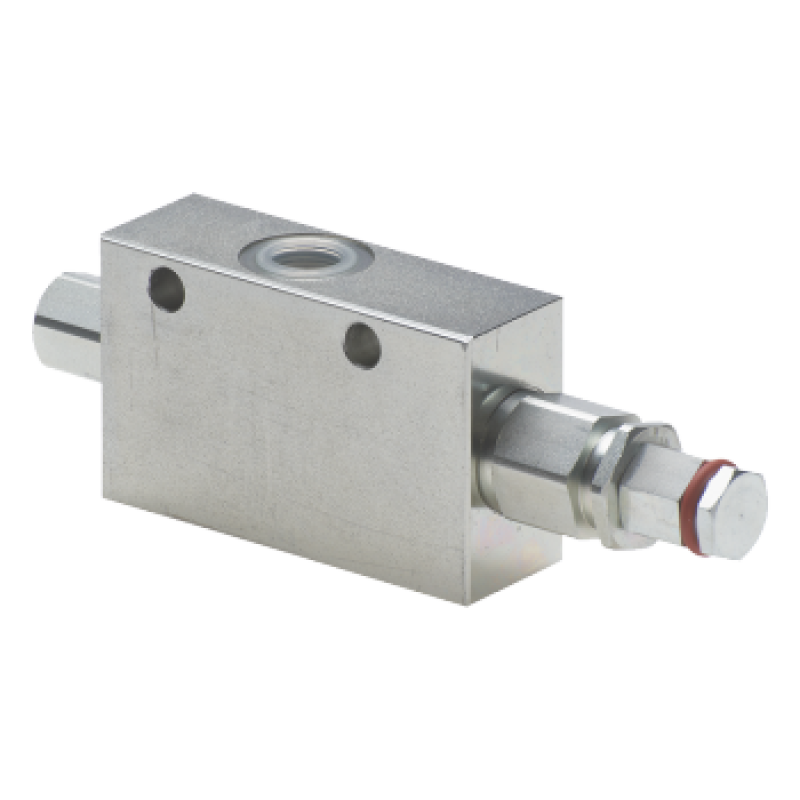

Single acting overcenter valve FPOB S 1/2 L20 (1/2'' BSP, 50l/min)
Click image to enlarge

Single acting overcenter valve FPOB S 1/2 L20 (1/2'' BSP, 50l/min)
Model: FPOB S 1/2 L20
  • Model:
    FPOB S 1/2 L20
Maximum pressure (bar)350
Maximum flow (L/min)50
Valve functionBalanced single-acting overcenter valve with external pilot
Port connection1/2" BSP
Full specifications ↓ Technical catalog · PDF

Description

The FPOB S 1/2 L20 is a balanced single-acting overcenter valve with external pilot. The official exact-model entry lists maximum flow 50 L/min, maximum pressure 350 bar, valve setting 170 bar.

Documentation: DICSA. Technical documentation: verification pending. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Technical documentation

Single acting balanced overcenter (external pilot). Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.

Full specifications

Technical specifications
Maximum pressure (bar) 350
Maximum flow (L/min) 50
Port connection 1/2" BSP
Secondary port connection 1/4" BSP
Valve function Balanced single-acting overcenter valve with external pilot
Adjustment range (bar) 60–210
Adjustment minimum (bar) 60
Adjustment maximum (bar) 210
Valve setting (bar) 170
Original specifications — unverified

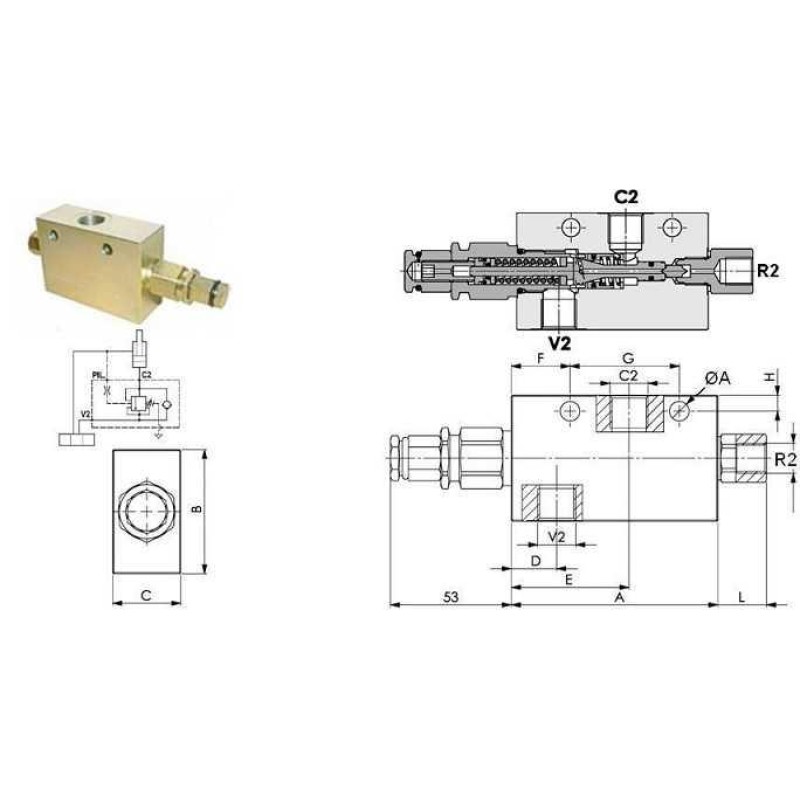

Press. increase(bar/turn) 70
B 65
F 25,6
G 47,6
D 19,5
C 35
E 51
A 90
ØA Ø8,5
