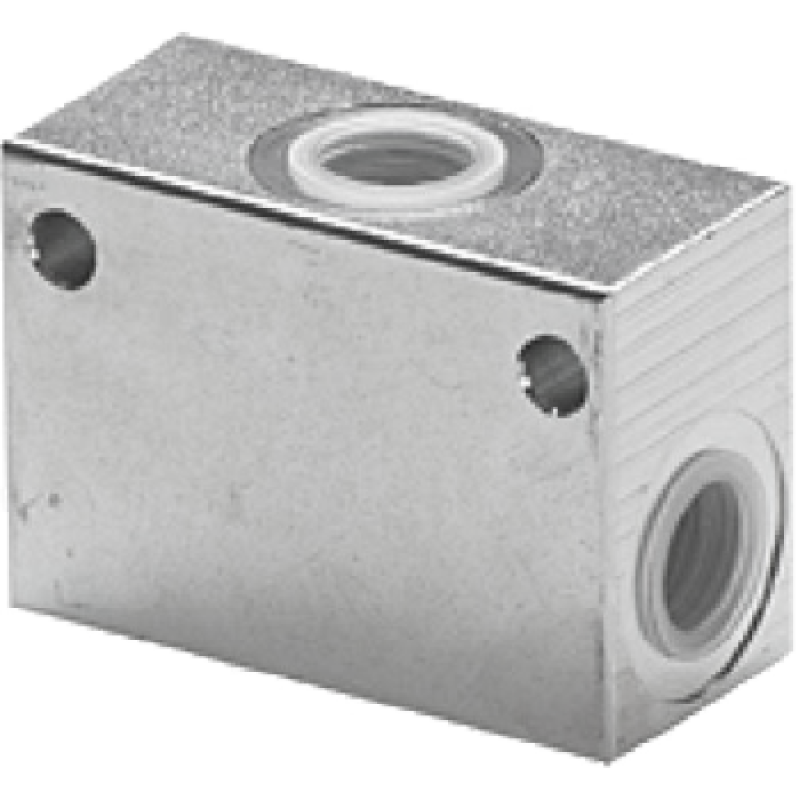

Shuttle valve VT005004
Model: VT005004
Maximum pressure (bar)500
Port 1 thread1/4'' BSP
Shuttle valve VT005004. The valve controls the fluid circuit according to its source family. Check the exact port and actuation arrangement.
Model specifications: Maximum pressure (bar): 500.
Shuttle valve. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Valve |
| Maximum pressure (bar) | 500 |
| Port 1 thread | 1/4'' BSP |
| Equipment family | Restrictor valves and hose breaks valves |
| Original specifications - unverified | |
| Max. pressure, bar | 350 |
| Flow max, l/min | 25 |
| R1 | 1/4'' BSP |
| C | 63 |
| D | 30 |
| E | 45 |
| F | 15 |
| G | 51 |
| H | 9 |
| I | 6,5 |
