Valve

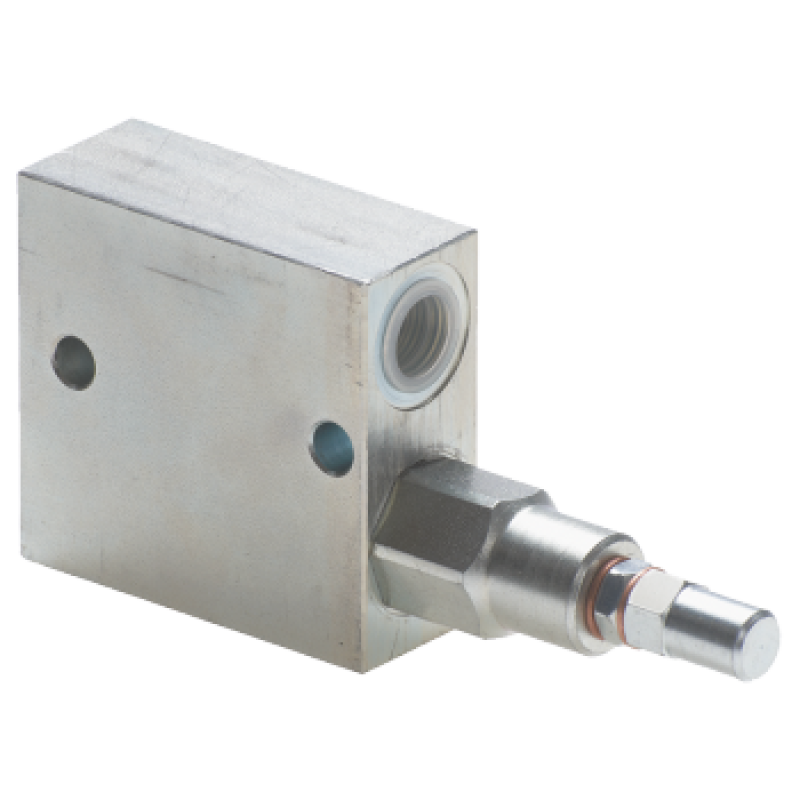

Sequence valve with check valve (steel) VS2C1/2

Model: VS2C1/2
Maximum pressure (bar)350
Port 1 thread1/2" BSP

Description

Sequence valve with check valve (steel) VS2C1/2. The valve controls reverse flow through the stated connection arrangement.

Model specifications: Maximum pressure (bar): 350.

Technical documentation

Sequence valve with check valve (steel). The exact model is listed on page 1.

Full specifications

Technical specifications
Component type Valve
Maximum pressure (bar) 350
Port 1 thread 1/2" BSP
Equipment family Sequence valve
Original specifications - unverified
Max. pressure, bar 350
Flow max, l/min 70
R1 1/2'' BSP
Press. increase(bar/turn) 30
Reg.rate(bar) 10 - 180
Setting, bar 90
A 80
B 152
C 15
D 7
E 55
F 37
G 33
H 70
I 30
