Sea water/oil heat exchangers MS134B4
Click image to enlarge

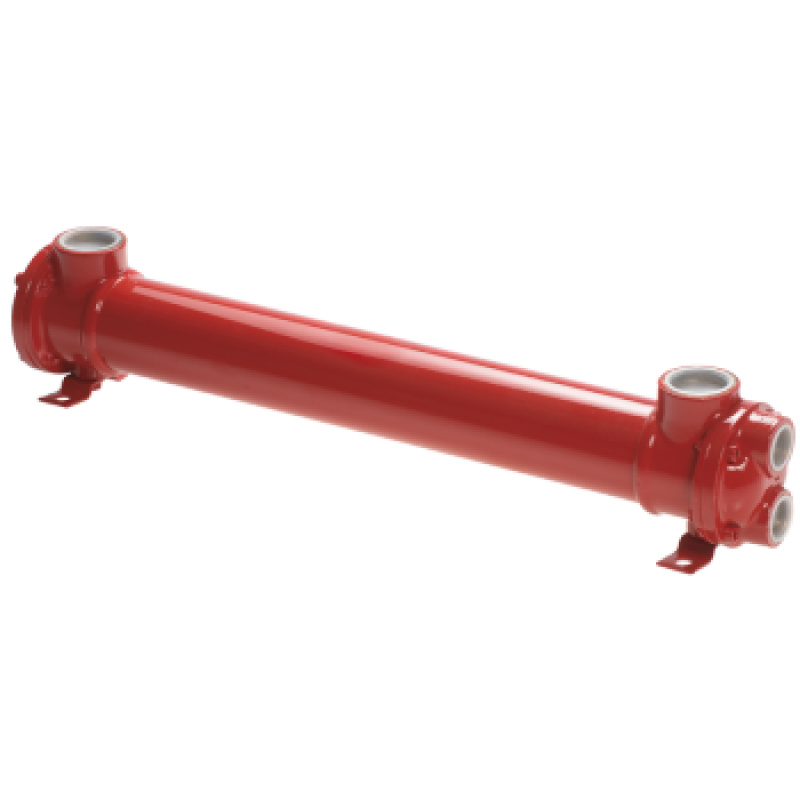

Seawater-to-oil heat exchanger

Sea water/oil heat exchangers MS134B4
Model: MS134B4
  • Model:
    MS134B4
Minimum oil flow (L/min)80
Maximum oil flow (L/min)250
Connection specification1 1/2" BSP
Maximum working pressure (bar)12
Catalog reference temperature (°C)50
Tube materialCopper-nickel 90/10
Full specifications ↓ Technical catalog · PDF

Description

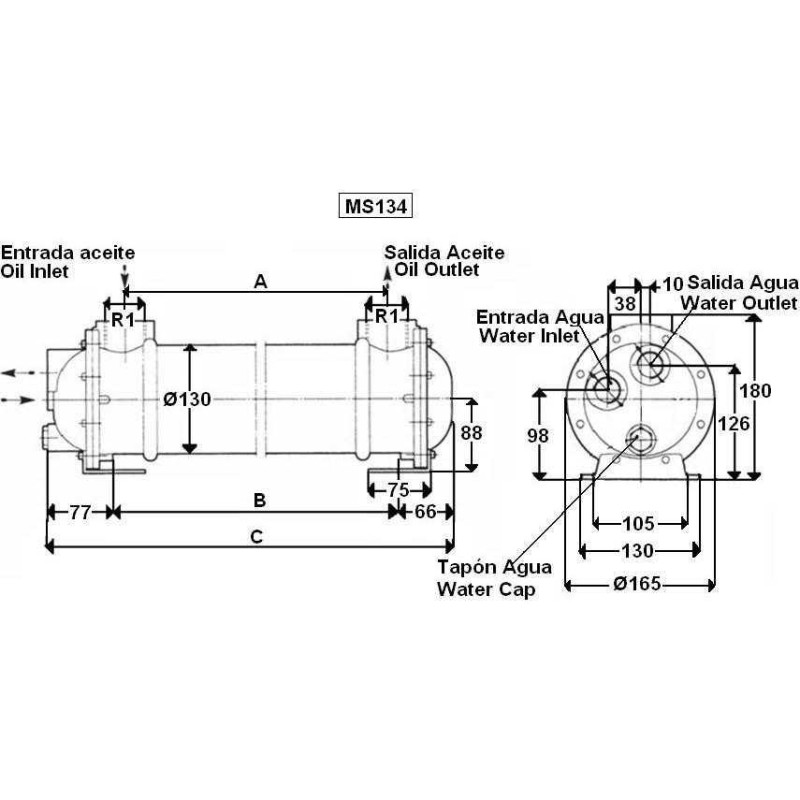

MS134B4 is a seawater-to-oil heat exchanger with a catalog oil-flow range of 80–250 L/min. The model-specific connections and drawing are provided in the linked official documentation.

The catalog heat-transfer range is 48–56 kW at the source reference conditions: 50°C, 46 cSt viscosity and 15°C water. Maximum working pressure is 12 bar in both the oil and water circuits.

Technical documentation publisher: DICSA. Official model data (PDF).

Full specifications

Technical specifications
Component type Seawater-to-oil heat exchanger
Maximum working pressure (bar) 12
Minimum oil flow (L/min) 80
Maximum oil flow (L/min) 250
Connection specification 1 1/2" BSP
Catalog reference temperature (°C) 50
Reference viscosity (cSt) 46
Reference water temperature (°C) 15
Tube material Copper-nickel 90/10
Shell material Brass
End cap material Bronze
Catalog heat-transfer range (kW) 48–56
Thermal rating conditions Catalog reference 50°C; viscosity 46 cSt; water 15°C
Reference heat-transfer minimum (kW) 48
Reference heat-transfer maximum (kW) 56
Original specifications — unverified
Unverified original: A 845
Unverified original: B 806 - 904
Unverified original: C 1
