S.A. hand pump without tank HP50
Model: HP50
Displacement per stroke (cm³/stroke)33
Working pressure (bar)250
Port thread1/2" BSP

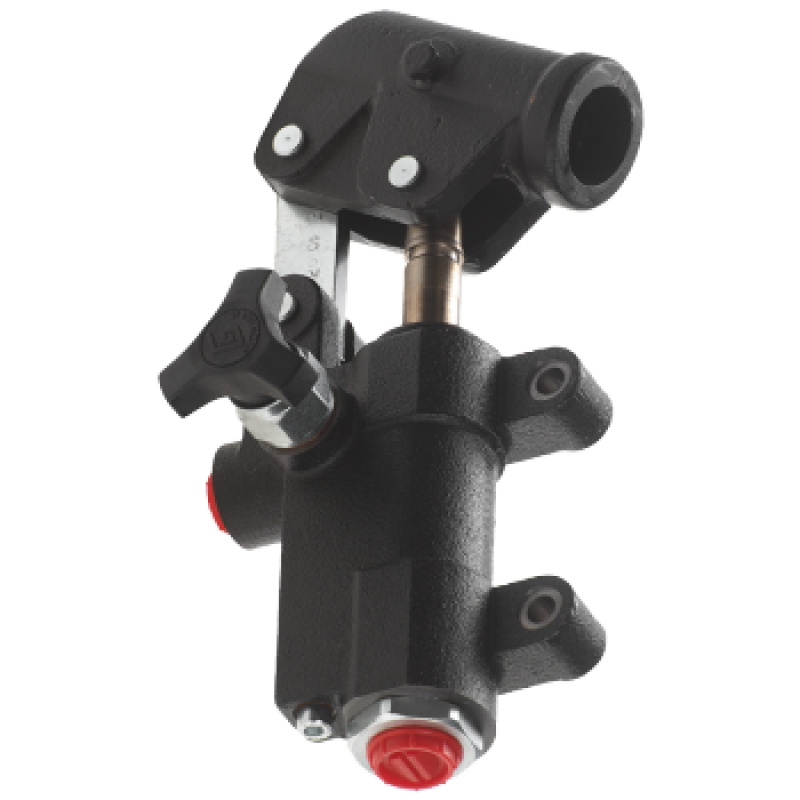

HP50 is a manually operated hydraulic pump. The specifications below are matched to the exact model in the linked official technical documentation.
Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.
| Technical specifications | |
| Working pressure (bar) | 250 |
| Displacement per stroke (cm³/stroke) | 33 |
| Port thread | 1/2" BSP |
| Pump action | single acting |

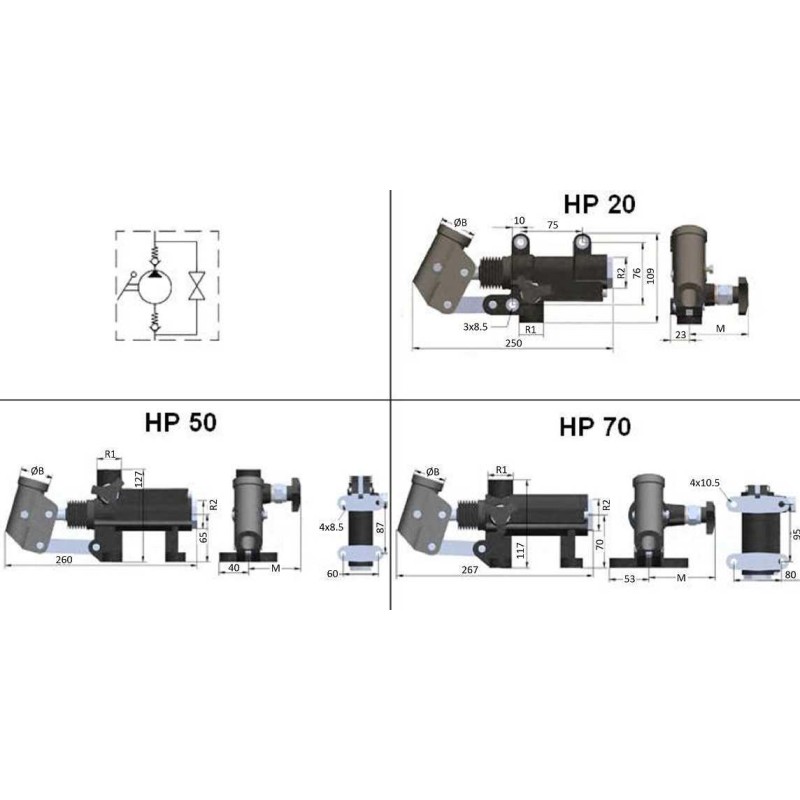

| Legacy dimensions — revision unverified | |
| R2 | 1/2 |
| M | 70 |
| ØB | 27 |
