Hydraulic cylinder

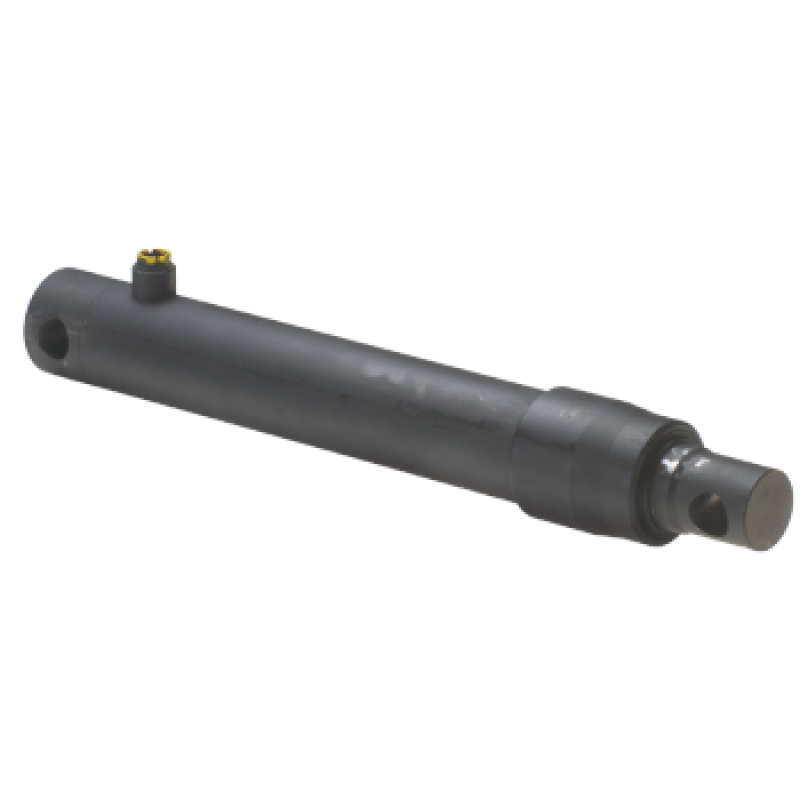

S.A. cylinder (with head bush) SE45200

Model: SE45200
Stroke (mm)200
Port 1 thread3/8" BSP

Description

S.A. cylinder (with head bush) SE45200. The cylinder converts fluid pressure into linear movement. Check the model-specific mounting and connection arrangement.

Model specifications: Stroke (mm): 200.

Technical documentation

S.A. cylinder (with head bush). The exact model is listed on page 1.

Full specifications

Technical specifications
Component type Hydraulic cylinder
Stroke (mm) 200
Port 1 thread 3/8" BSP
Equipment family Hydraulic cylinders
Original specifications - unverified
Rod diameter, mm 45
Stroke, mm 200
R1 3/8'' BSP
Kg/100bar 1.59
ØPS 50 H9
G 22
H 34
I 330
M 75
N 47
O 70
ØD 60
ØF 23,4
