ROEMHELD 1546266B hydraulic block cylinder, 50 mm piston, 50 mm stroke

The ROEMHELD 1546266B is a double-acting hydraulic block cylinder for controlled linear movement in fixtures and machinery. It has a 50 mm piston, a 32 mm rod and a 50 mm stroke. The piston rod end is external thread M27.

This factory article uses O-ring manifold-mounting connection B and 4 longitudinal holes. The body material is steel and the seals are FKM. Maximum operating pressure is 500 bar.

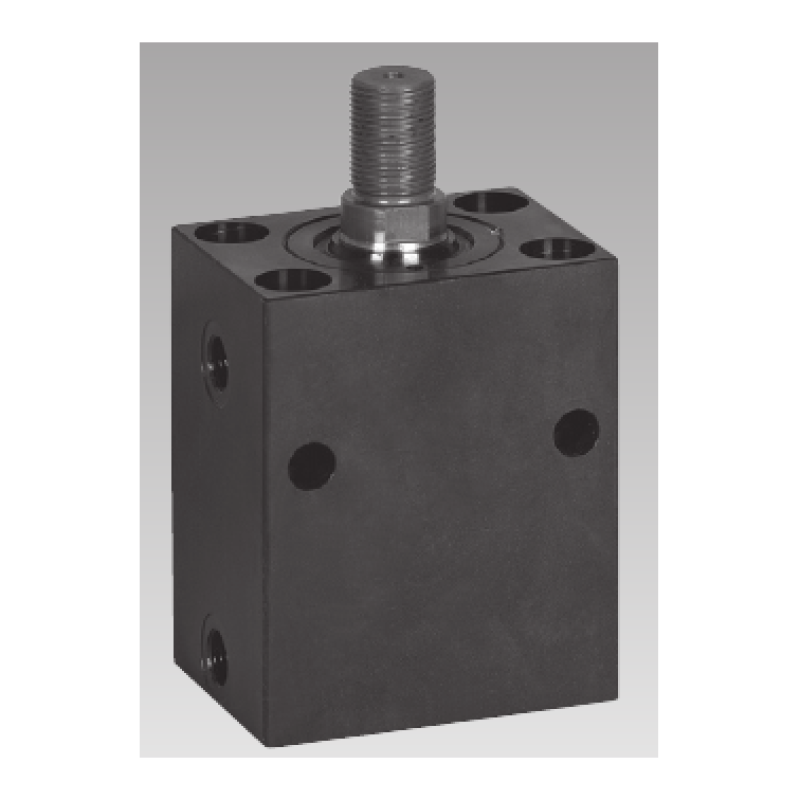

The manufacturer series photograph is representative. Ports and mounting arrangements vary by factory article. The factory article number defines the mounting and seal specification.

The current factory article and the linked 2021 series sheet differ on FKM temperature limits. Suitability requires manufacturer confirmation for this execution.
