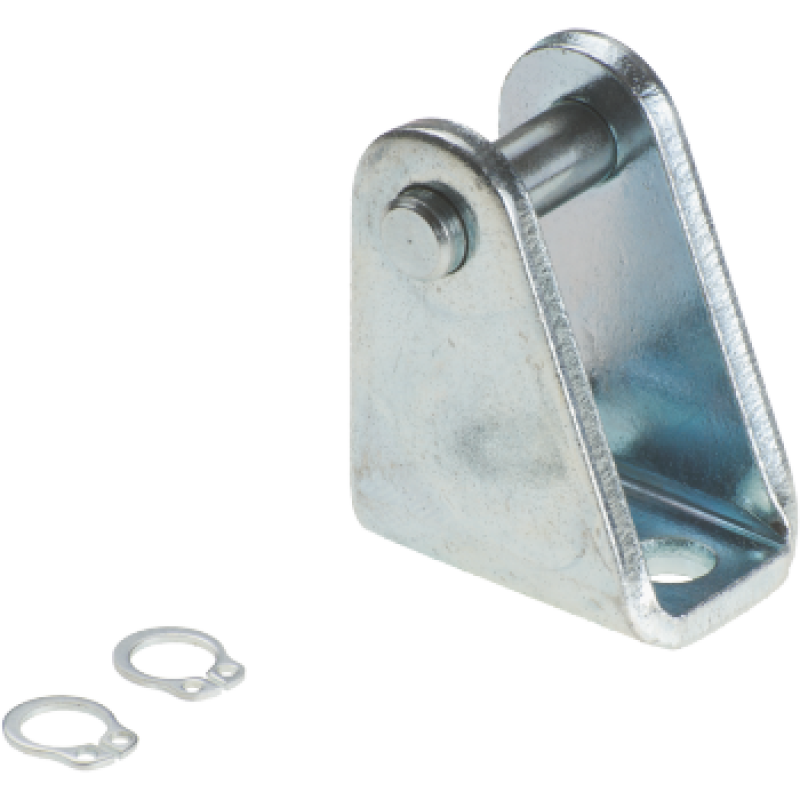

Rear pivot mounting for micro-cylinders CMCN16

Model: CMCN16

Description

Rear pivot mounting for micro-cylinders CMCN16. This accessory supports the cylinder installation identified by its source family. Check the exact mating components before selection.

Technical documentation

Rear pivot mounting for micro-cylinders. The exact model is listed on page 1.

Full specifications

Technical specifications
Component type Pneumatic cylinder
Equipment family Micro-cylinders accessories
Original specifications - unverified
A 28
B 12,1
C 3
D 18,1
E 27
G 98
H 13
I 15
J 25
ØF 5,5
ØK 6
