Proportional no compensated flow control valve 2 ways normally closed REG2VPROP-24CC

Technical overview

The REG2VPROP-24CC is a proportional flow control valve. The following specifications are matched to the exact model row in the official DICSA catalogue.

Verified catalogue specifications

Component type

Proportional flow control valve

Port thread

3/8" BSP

Coil voltage (V)

24

Electrical supply

DC

Maximum flow (L/min)

40

Maximum pressure (bar)

260

Normal state

Normally closed

Flow compensation

Not compensated

Number of ways

2

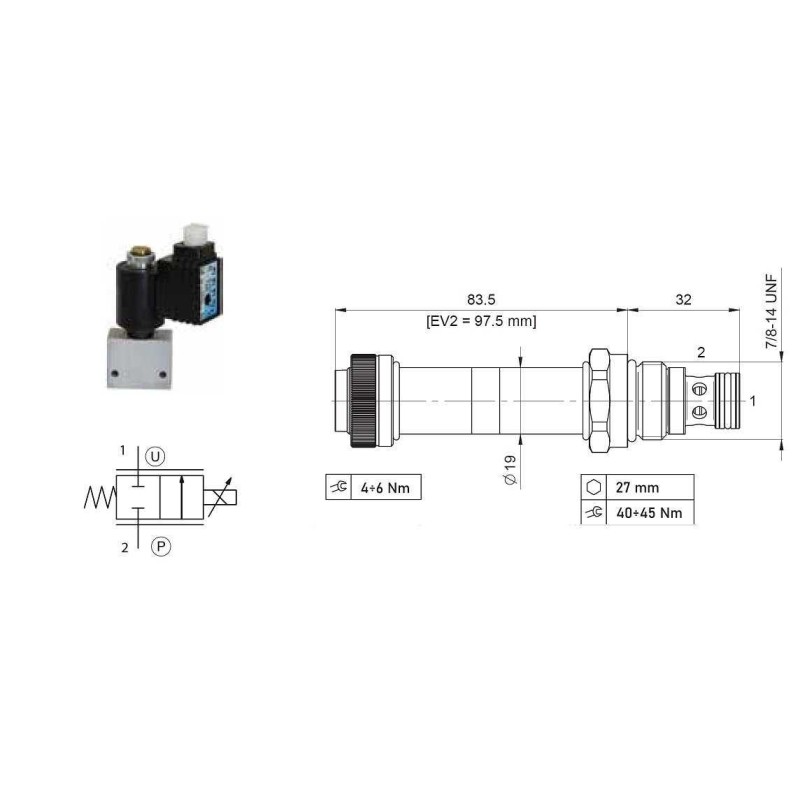

Technical documentation

Official technical documentation (PDF).

Source notes

• The catalogue specifies a potentiometer or proportional joystick and an included electronic driver.

Technical documentation publisher: DICSA.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.
