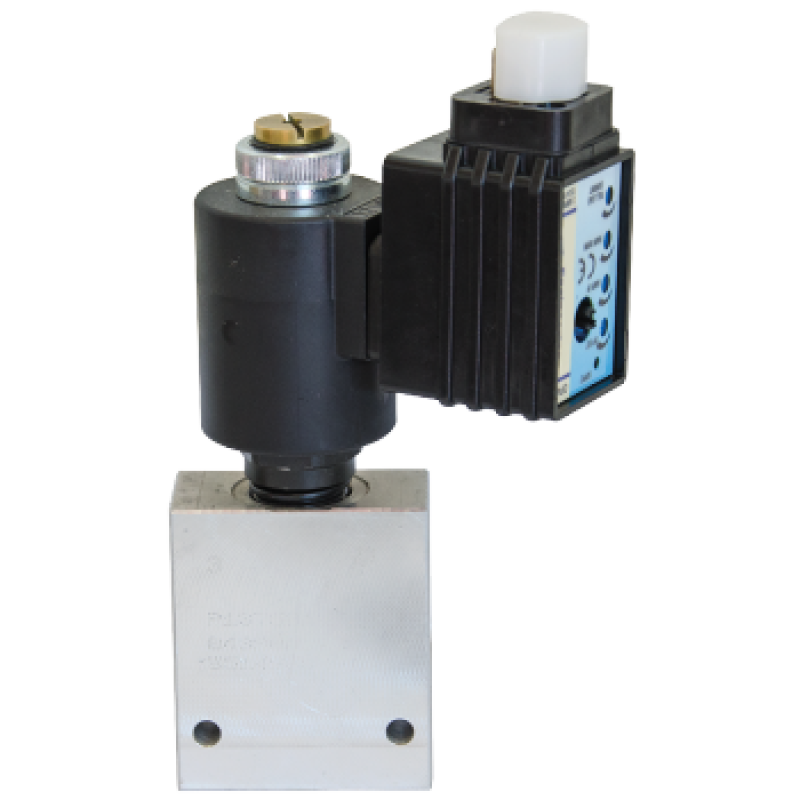

Proportional compensated flow control valve 3 ways normally closed REG403VPROP-12CC
Click image to enlarge
Proportional flow control valve

Proportional compensated flow control valve 3 ways normally closed REG403VPROP-12CC
Model: REG403VPROP-12CC
  • Model:
    REG403VPROP-12CC
Maximum pressure (bar)270
Maximum flow (L/min)40
Normal stateNormally closed
Coil voltage (V)12
Port thread3/8" BSP
Full specifications ↓ Technical catalog · PDF

Description

Technical overview

The REG403VPROP-12CC is a proportional flow control valve. The following specifications are matched to the exact model row in the official DICSA catalogue.

Verified catalogue specifications

Component type
Proportional flow control valve
Port thread
3/8" BSP
Coil voltage (V)
12
Electrical supply
DC
Maximum flow (L/min)
40
Maximum pressure (bar)
270
Normal state
Normally closed
Flow compensation
Pressure compensated
Number of ways
3

Technical documentation

Official technical documentation (PDF).

Source notes

  • The catalogue specifies a potentiometer or proportional joystick and an included electronic driver.

Technical documentation publisher: DICSA.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.

Full specifications

Technical specifications
Component type Proportional flow control valve
Normal state Normally closed
Number of ways 3
Maximum pressure (bar) 270
Maximum flow (L/min) 40
Flow compensation Pressure compensated
Coil voltage (V) 12
Electrical supply DC
Port thread 3/8" BSP
