Pressure relief valve VT0110087035 (70l/min, 1/2'' BSP)

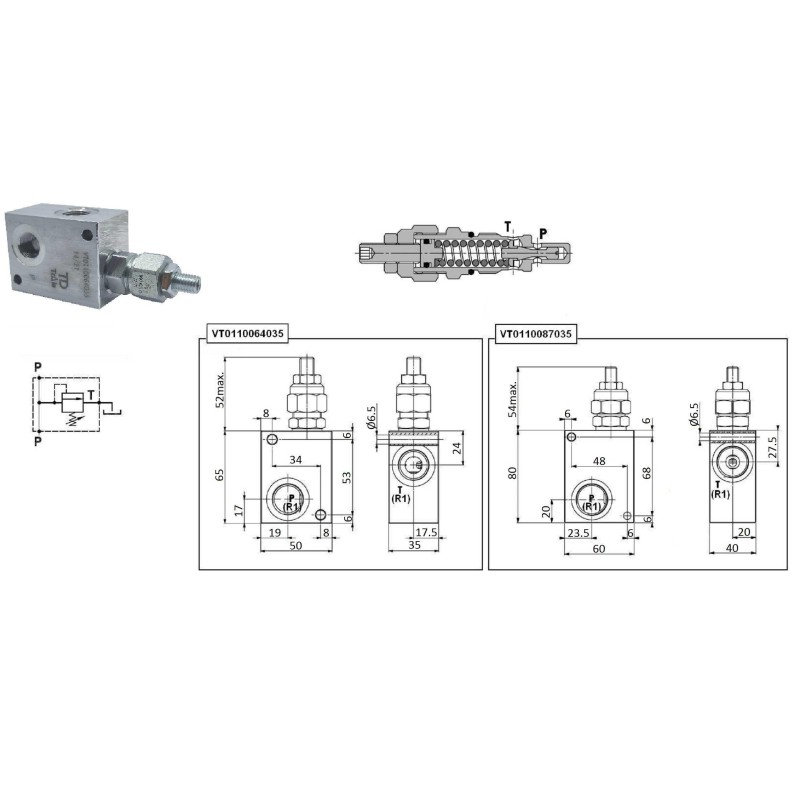

Click image to enlarge

Pressure relief valve VT0110087035 (70l/min, 1/2'' BSP)
Model: VT0110087035 · Trale
  • Manufacturer:
    Trale
  • Model:
    VT0110087035
Maximum pressure (bar)250
Maximum flow (L/min)70
Valve functionInline pressure relief valve with screw adjustment
Port connection1/2" BSP
Install.torque70 - 75
Full specifications ↓ Technical catalog · PDF

Description

The VT0110087035 is a inline pressure relief valve with screw adjustment. The official exact-model entry lists maximum flow 70 L/min, maximum pressure 250 bar.

Documentation: DICSA. Official technical reference (PDF), page 1. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Full specifications

Technical specifications
Maximum pressure (bar) 250
Maximum flow (L/min) 70
Port connection 1/2" BSP
Valve function Inline pressure relief valve with screw adjustment
Adjustment range (bar) 120–320
Adjustment minimum (bar) 120
Adjustment maximum (bar) 320
Original specifications — unverified
Install.torque 70 - 75
COLOUR Rojo/Red
Press. increase(bar/turn) 50
Reg.rate(bar) 120 - 32
Setting, bar -
Cartridge weight(kg) 0,29
Cartridge+bodyweight 0,73
