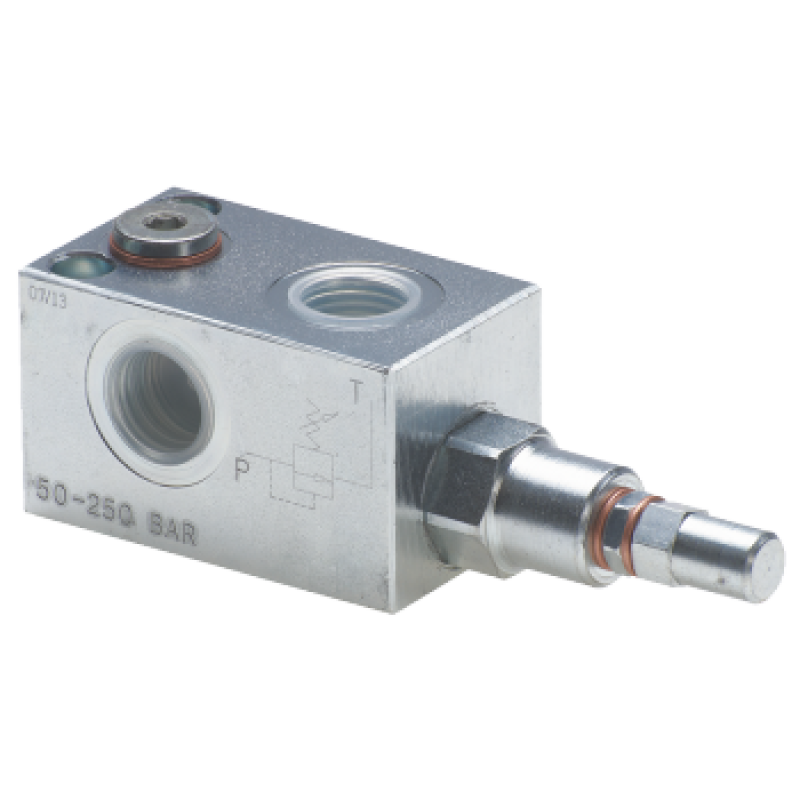

Pressure relief valve VMP 3/8 50-250BAR (45l/min, 3/8''BSP)
Click image to enlarge

Pressure relief valve VMP 3/8 50-250BAR (45l/min, 3/8''BSP)
Model: VMP 3/8 50-250BAR
  • Model:
    VMP 3/8 50-250BAR
Maximum pressure (bar)250
Maximum flow (L/min)45
Valve functionSteel inline pressure relief valve with screw adjustment
Port connection3/8" BSP
Full specifications ↓ Technical catalog · PDF

Description

The VMP 3/8 50-250BAR is a steel inline pressure relief valve with screw adjustment. The official exact-model entry lists maximum flow 45 L/min, maximum pressure 250 bar, valve setting 130 bar.

Documentation: DICSA. Official technical reference (PDF), page 1. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Full specifications

Technical specifications
Maximum pressure (bar) 250
Maximum flow (L/min) 45
Port connection 3/8" BSP
Valve function Steel inline pressure relief valve with screw adjustment
Adjustment range (bar) 50–250
Adjustment minimum (bar) 50
Adjustment maximum (bar) 250
Valve setting (bar) 130
Original specifications — unverified
Press. increase(bar/turn) 45
Settin(bar) 130

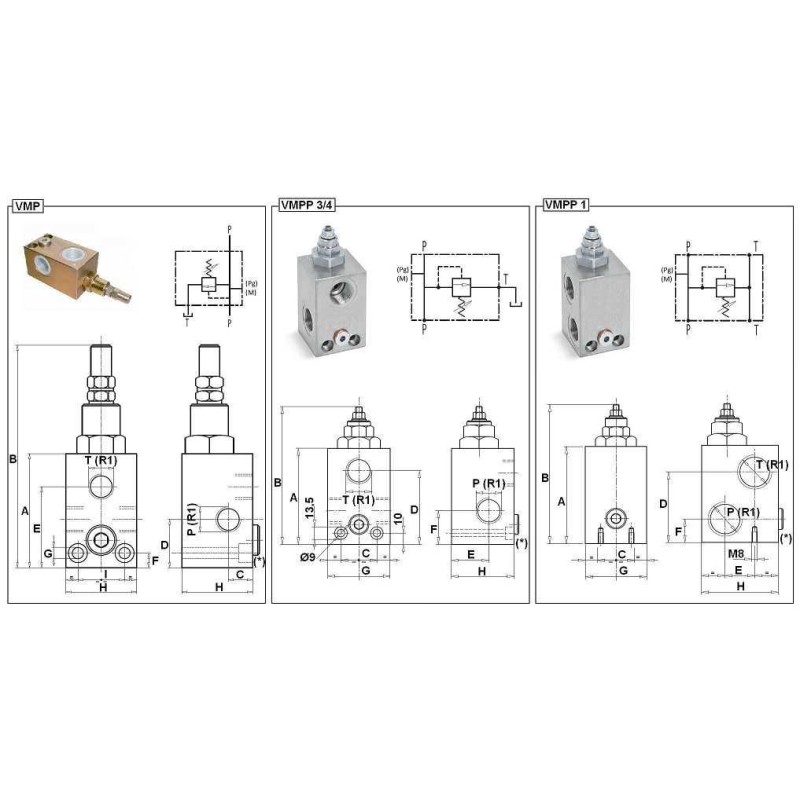

B 134
H 40
F 8,5
G 6,5
I 26
D 26
C 15
E 49,5
A 72
