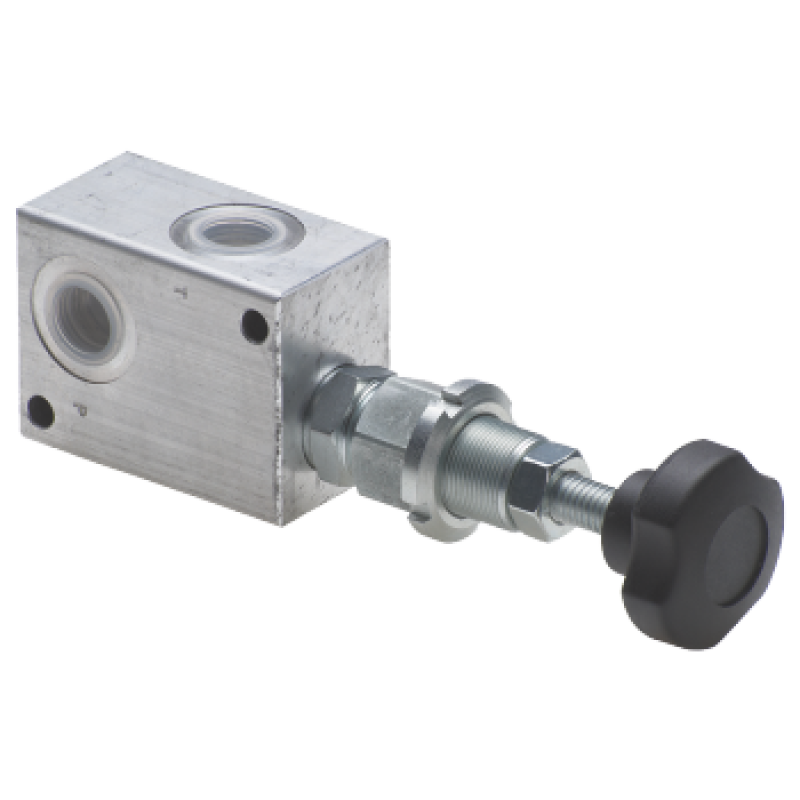

Pressure relief valve FPM D CB 40F R 1/205 (40l/min, 1/2''BSP)
Click image to enlarge

Pressure relief valve FPM D CB 40F R 1/205 (40l/min, 1/2''BSP)
Model: FPM D CB 40F R 1/205
  • Model:
    FPM D CB 40F R 1/205
Maximum pressure (bar)250
Maximum flow (L/min)40
Valve functionPanel-mount pressure relief valve with handwheel adjustment
Port connection1/2" BSP
Full specifications ↓ Technical catalog · PDF

Description

The FPM D CB 40F R 1/205 is a panel-mount pressure relief valve with handwheel adjustment. The official exact-model entry lists maximum flow 40 L/min, maximum pressure 250 bar, valve setting 5 bar.

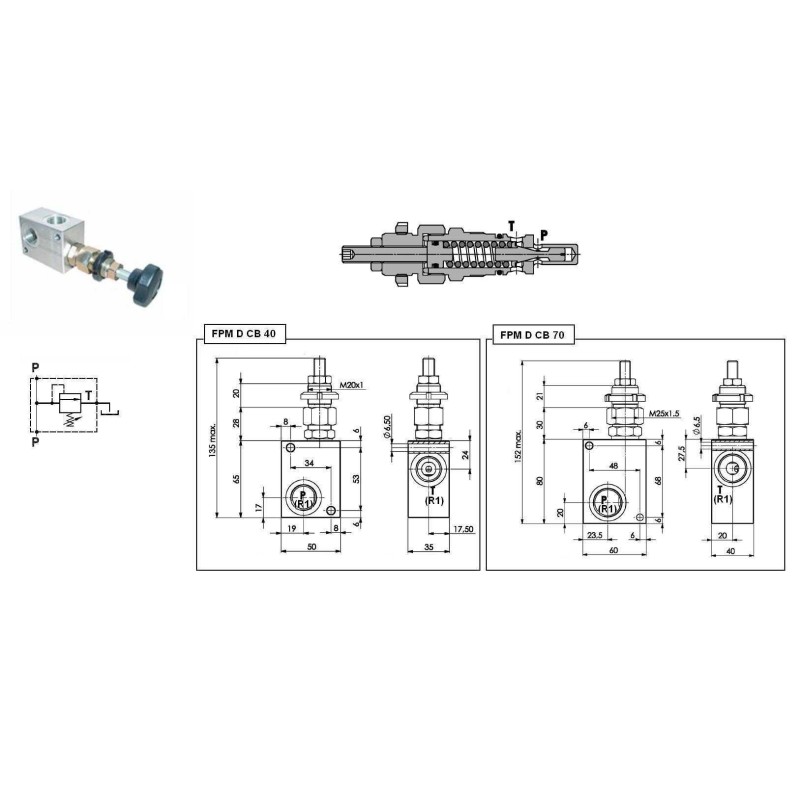

Documentation: DICSA. technical documentation. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.

Full specifications

Technical specifications
Maximum pressure (bar) 250
Maximum flow (L/min) 40
Port connection 1/2" BSP
Valve function Panel-mount pressure relief valve with handwheel adjustment
Adjustment range (bar) 5–50
Adjustment minimum (bar) 5
Adjustment maximum (bar) 50
Valve setting (bar) 5
Original specifications — unverified
Install.torque 45 - 50
COLOUR Blanco / White*
Press. increase(bar/turn) 10
Cartridge weight(kg) 0,21
Cartridge+bodyweight 0,45
