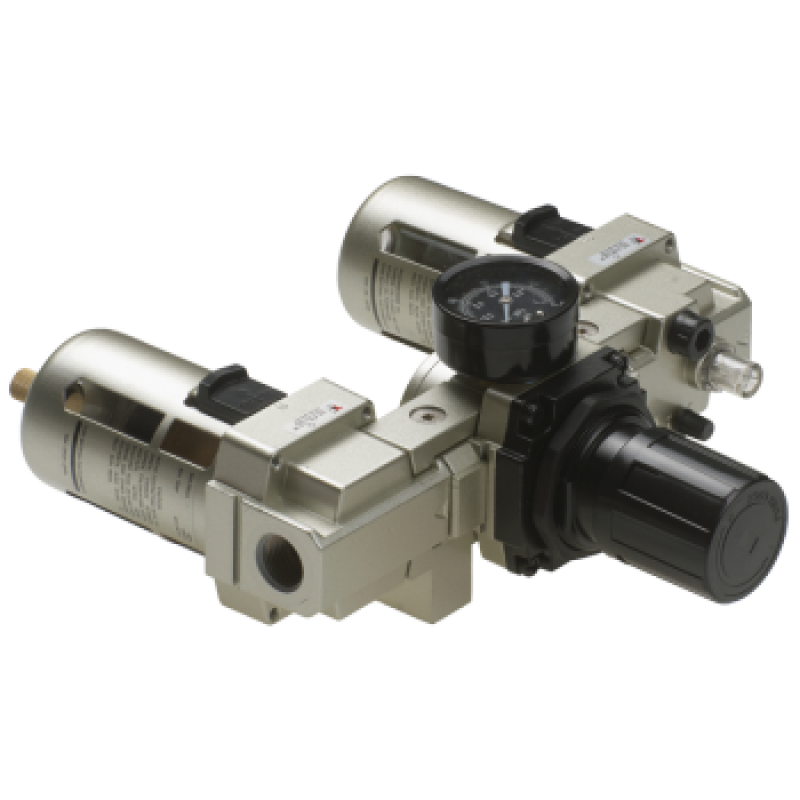

Pressure reducer + lubricant + filter (3 bodies) FRL 1/2 M

Model: FRL 1/2 M
Maximum pressure (bar)10
Port 1 thread1/2" BSP

Description

Pressure reducer + lubricant + filter (3 bodies) FRL 1/2 M. This filtration component supports fluid cleanliness in the stated installation. Check the exact element and housing arrangement.

Model specifications: Maximum pressure (bar): 10.

Technical documentation

Pressure reducer + lubricant + filter (3 bodies). The exact model is listed on page 2.

Full specifications

Technical specifications
Component type Filter
Maximum pressure (bar) 10
Port 1 thread 1/2" BSP
Equipment family Filters
Original specifications - unverified
Max. pressure, bar 10
Flow max, l/min 4000
R1 1/2'' BSP
A 238
B 191,5
C 41
D 70
E 65,5
F 50
G 84
H 40
K 13
L 7
N 33
P 88
