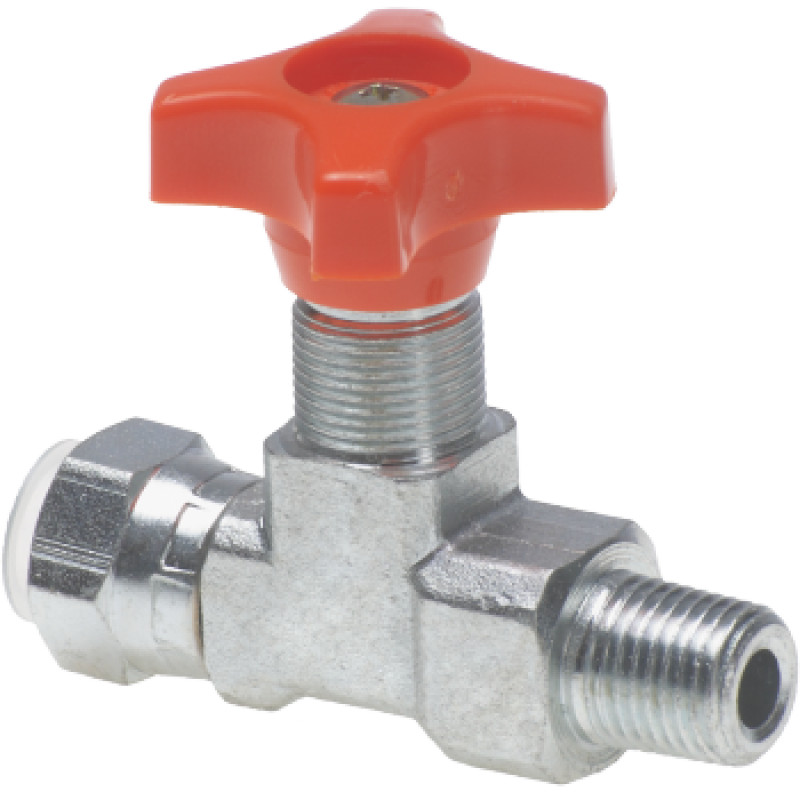

Pressure Gauge Protector (in-line) FM-SF straight FT29008

Model: FT29008
Maximum pressure (bar)350
Port 1 thread1/2'' BSP

Description

Pressure Gauge Protector (in-line) FM-SF straight FT29008. The valve controls the fluid circuit according to its source family. Check the exact port and actuation arrangement.

Model specifications: Maximum pressure (bar): 350.

Technical documentation

Pressure Gauge Protector (in-line) FM-SF straight. The exact model is listed on page 1.

Full specifications

Technical specifications
Component type Valve
Maximum pressure (bar) 350
Port 1 thread 1/2'' BSP
Port 2 thread 1/2'' BSPT
Equipment family Valves for manometers
Original specifications - unverified
Max. pressure, bar 350
R1 1/2'' BSP
R2 1/2'' BSPT
B 16
D 32
E 83
G 12,5
I 40
L 82,5
M 19
P 11
ØA 40
ØB M20X
ØC 6,5
