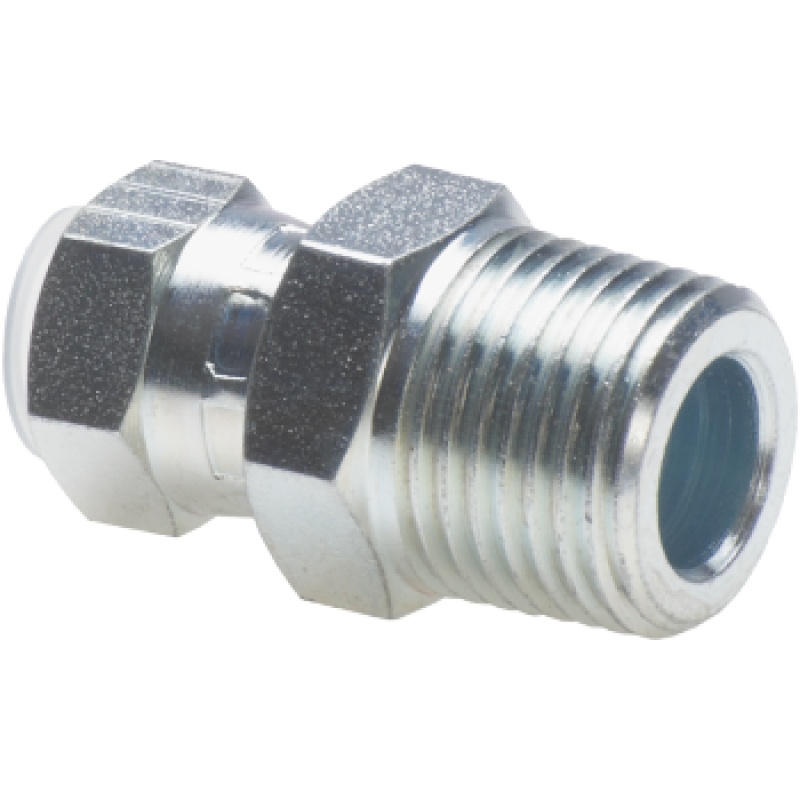

Pressure Gauge Adaptor (in-line) SF-FM FT29944
Model: FT29944
Port 1 thread1/4'' BSP
Pressure Gauge Adaptor (in-line) SF-FM FT29944. The valve controls the fluid circuit according to its source family. Check the exact port and actuation arrangement.
Pressure Gauge Adaptor (in-line) SF-FM. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Valve |
| Port 1 thread | 1/4'' BSP |
| Port 2 thread | 1/4'' BSPT |
| Equipment family | Valves for manometers |
| Original specifications - unverified | |
| R1 | 1/4'' BSP |
| R2 | 1/4'' BSPT |
| A | 18 |
| B | 17 |
| C | 13 |
| D | 27 |
| E | 9,5 |
