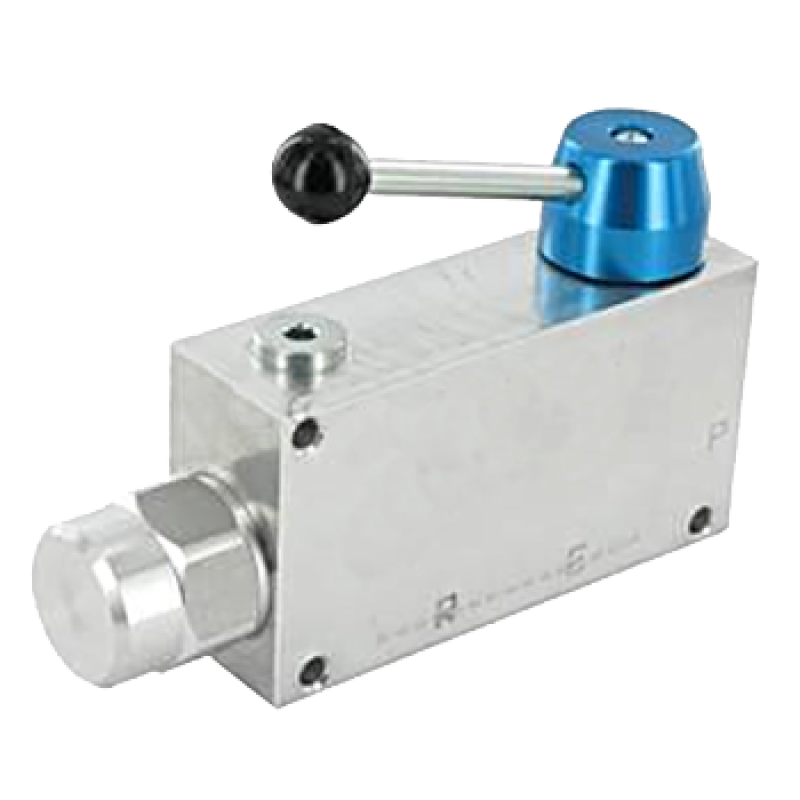

Flow control valve FPVP 1/2 H (90 l/min, 1/2'' BSP, 3 ways, compensated)
Click image to enlarge

Flow control valve FPVP 1/2 H (90 l/min, 1/2'' BSP, 3 ways, compensated)
Model: FPVP 1/2 H
  • Model:
    FPVP 1/2 H
Maximum pressure (bar)250
Maximum flow (L/min)90
Valve functionFPVP three-way pressure-compensated flow control valve with lever
Port connection1/2" BSP
Full specifications ↓ Technical catalog · PDF

Description

The FPVP 1/2 H is a fpvp three-way pressure-compensated flow control valve with lever. The official exact-model entry lists maximum flow 90 L/min, maximum pressure 250 bar.

Documentation: DICSA. Technical documentation: verification pending. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

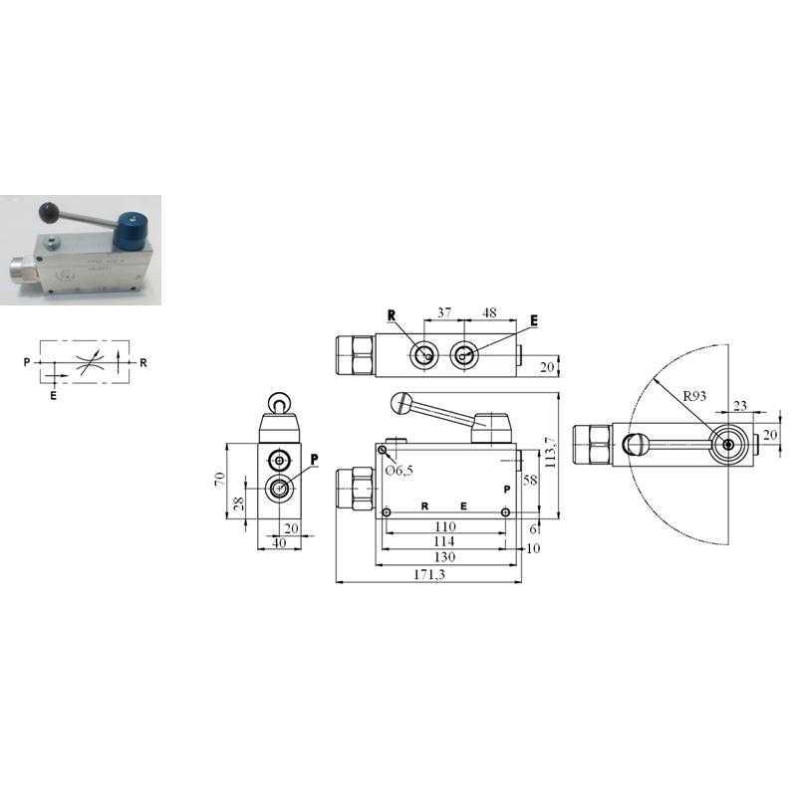

Technical documentation

Pressure compensated flow control valve 3 ways with lever. Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.

Full specifications

Technical specifications
Maximum pressure (bar) 250
Maximum flow (L/min) 90
Maximum regulated flow (L/min) 50
Port connection 1/2" BSP
Valve function FPVP three-way pressure-compensated flow control valve with lever
Original specifications — unverified
Max. reg. flow, l/min 50
