Pneumatic cylinder

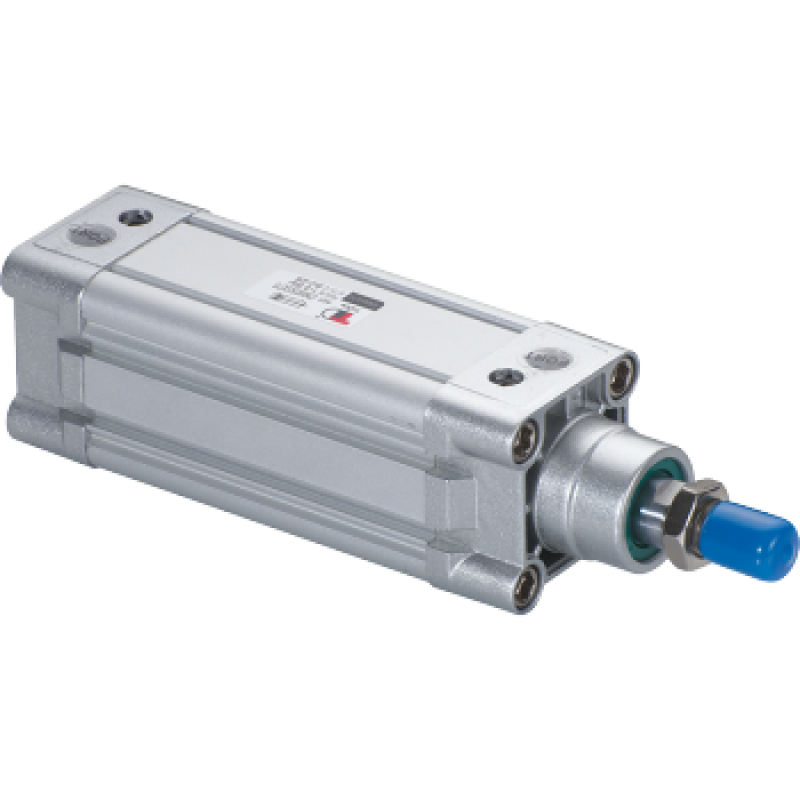

Pneumatic cylinders D.A. ISO 15552 Ø50 CNM0500200
Model: CNM0500200
Stroke (mm)200
Port 1 thread1/4" BSP
Pneumatic cylinders D.A. ISO 15552 Ø50 CNM0500200. This accessory supports the cylinder installation identified by its source family. Check the exact mating components before selection.
Model specifications: Stroke (mm): 200.
Pneumatic cylinders D.A. ISO 15552 Ø50. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Pneumatic cylinder |
| Stroke (mm) | 200 |
| Port 1 thread | 1/4" BSP |
| Equipment family | Pneumatic cylinders D.A. ISO 15552 |
| Original specifications - unverified | |
| Stroke, mm | 200 |
| R1 | M8 |
| R2 | 1/4'' BSP |
| A | 29.5 |
| B | M16X1,50 |
| C | 32 |
| D | 4 |
| E | 106 |
| F | 28 |
| G | 179 |
| I | 46,5 |
| J | 64 |
| K | 40 |
| ØH | 20 |
