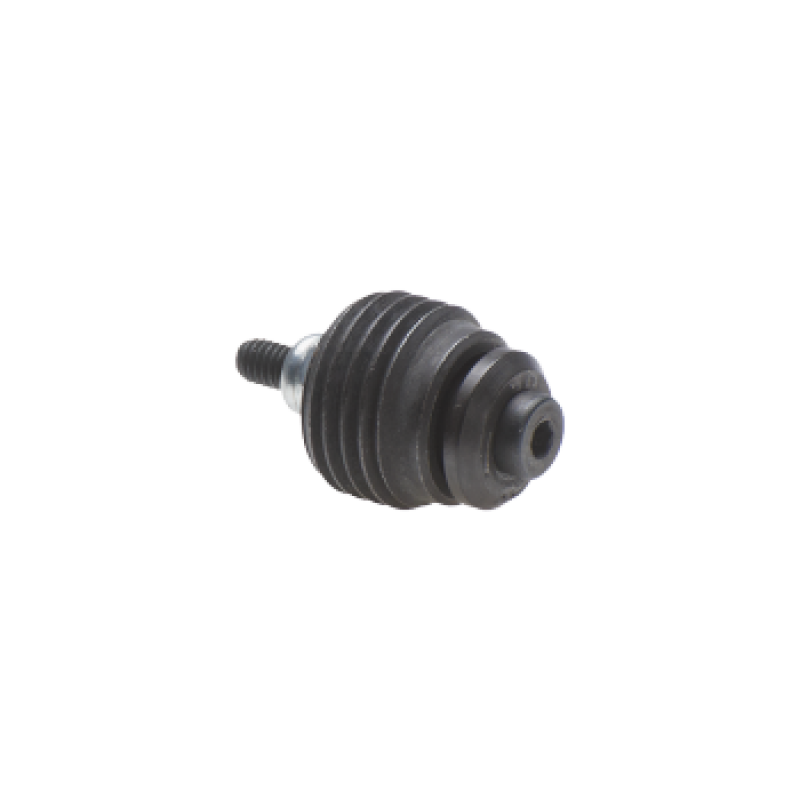

Plug-in hose break valve FPP 1/2. The valve controls the fluid circuit according to its source family. Check the exact port and actuation arrangement.
Plug-in hose break valve. Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.
| Technical specifications | |
| Component type | Valve |
| Equipment family | Restrictor valves and hose breaks valves |
| Original specifications - unverified | |
| Max. pressure, bar | 350 |
| Flow max, l/min | 80 |
| R1 | 1/2'' BSP |
| D | 29 |
| E | 13 |
| F | 6 |
| G | 45 |
| H | 30 |
| ØA | 13 |
| ØB | 4,5 |
| ØC | 15 |
