Hydraulic motor

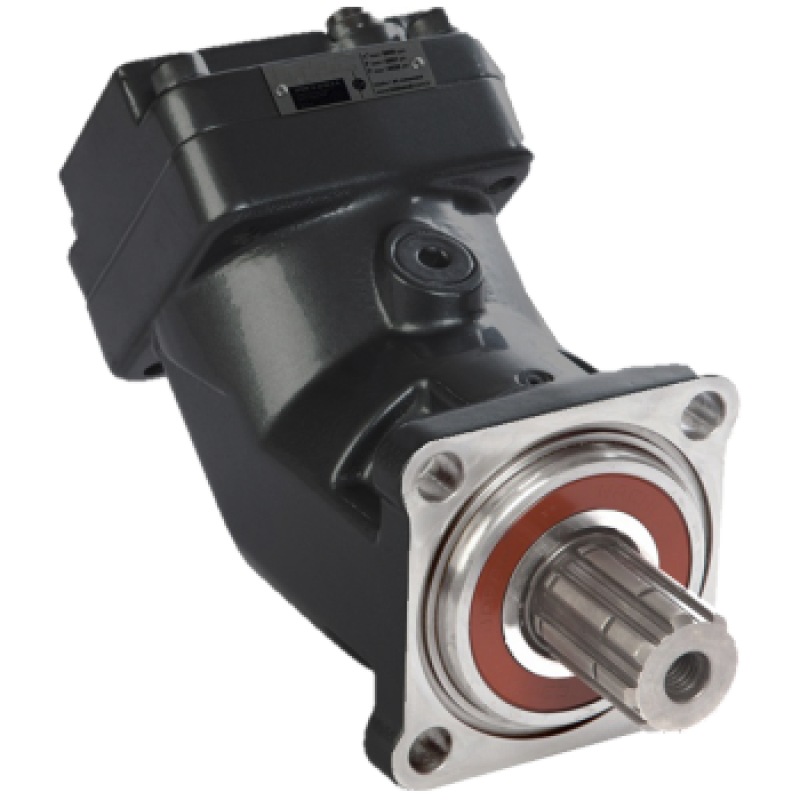

Piston motors MPT130

Model: MPT130
Maximum pressure (bar)450
FLOW(cm3)130
Port 1 thread1" BSP
Max. torque, N.m710 Nm
Full specifications ↓

Description

Piston motors MPT130. This component belongs to the stated fluid-power family. Check the exact installation and mating arrangement before selection.

This engineering record preserves the exact model reference from the source import. Normalized specifications are shown where the primary model row establishes their meaning and units. Original imported specifications are retained separately for review.

Local technical documentation: verification pending.

Full specifications

Technical specifications
Component type Hydraulic motor
Maximum pressure (bar) 450
Port 1 thread 1" BSP
Port 2 thread 1" BSP
Documentation status Exact primary-card model confirmed
Equipment family Piston motors
Original specifications - unverified
Max. pressure, bar 450
Working pressure, bar 400
FLOW(cm3) 130
Max. torque, N.m 710 Nm
Rotationspeed, rpm 3400
R1 1'' BSP
R2 1'' BSP
A 240
B 122,5
C 60
