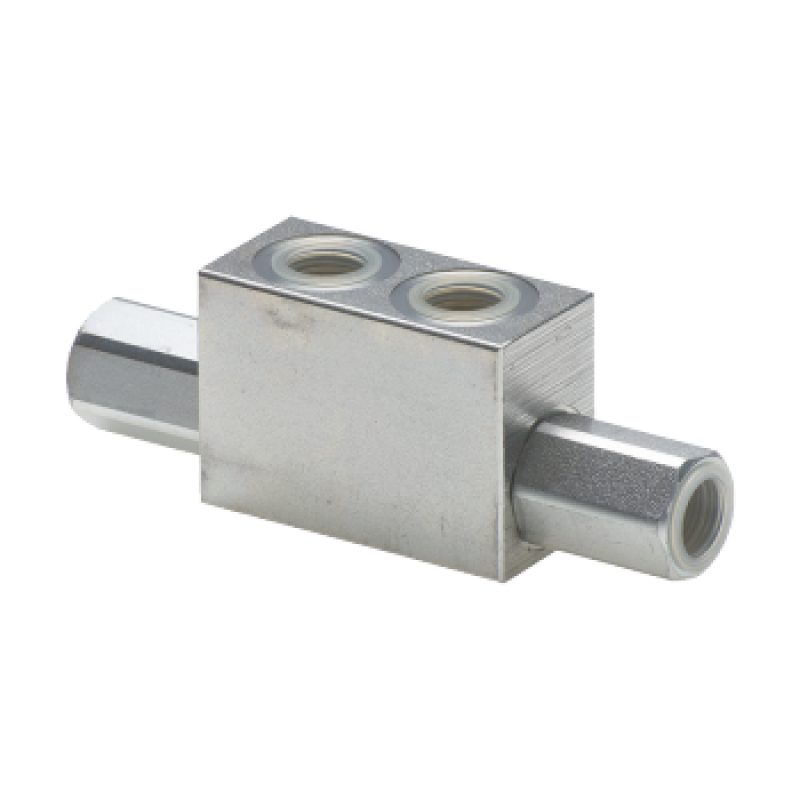

Pilot operated double check valves in block (in T) FPD 3/8-20 L
Model: FPD 3/8-20 L
Maximum pressure (bar)300
Port 1 thread3/8" BSP
Pilot operated double check valves in block (in T) FPD 3/8-20 L. The valve controls reverse flow through the stated connection arrangement.
Model specifications: Maximum pressure (bar): 300.
Pilot operated double check valves in block (in T). The exact model is listed on page 1.
| Technical specifications | |
| Component type | Valve |
| Maximum pressure (bar) | 300 |
| Port 1 thread | 3/8" BSP |
| Equipment family | Check-valves |
| Original specifications - unverified | |
| Max. pressure, bar | 300 |
| Flow max, l/min | 20 |
| R1 | 3/8'' BSP |
| Pilotratio | 1:4 |
| A | 126 |
| B | 63,6 |
| D | 29 |
| E | * |
| F | * |
| H | 30 |
| I | 45 |
| L | 15 |
| ØG | * |
