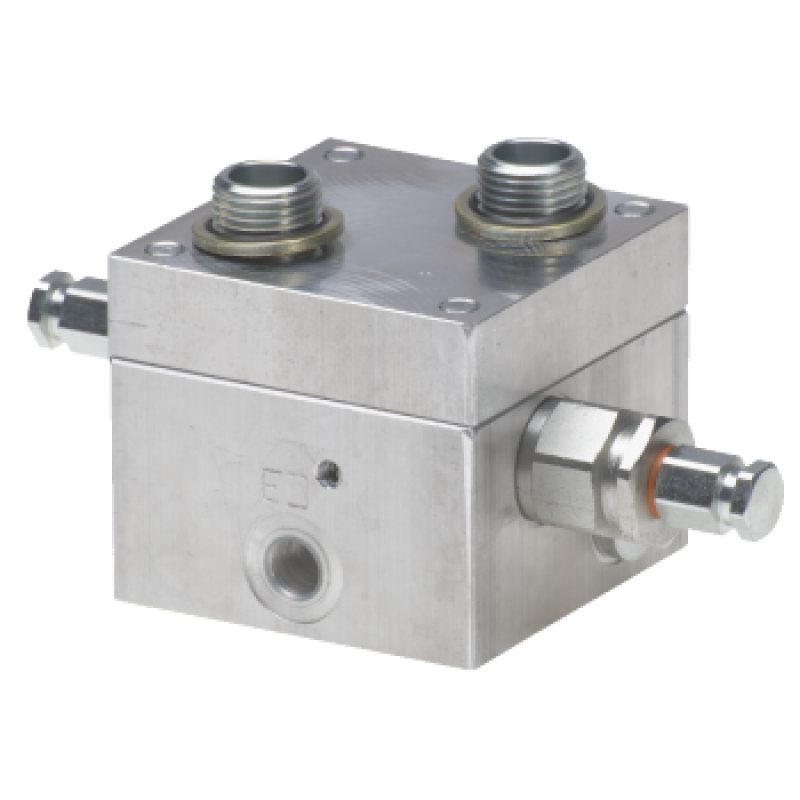

Overcenter valves over motor MOMP/ MOMR/MOMH type FPO50DVD21/2U35
Click image to enlarge

Overcenter valves over motor MOMP/ MOMR/MOMH type FPO50DVD21/2U35
Model: FPO50DVD21/2U35
  • Model:
    FPO50DVD21/2U35
Maximum pressure (bar)250
Maximum flow (L/min)50
Valve functionMotor-mounted overcenter valve for MOMP/MOMR/MOMH
Port connection1/2" BSP
Full specifications ↓ Technical catalog · PDF

Description

The FPO50DVD21/2U35 is a motor-mounted overcenter valve for momp/momr/momh. The official exact-model entry lists maximum flow 50 L/min, maximum pressure 250 bar.

Documentation: DICSA. Technical documentation: verification pending. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Some existing specifications differ from the referenced document; those values have been retained in the original fields pending revision confirmation.

Technical documentation

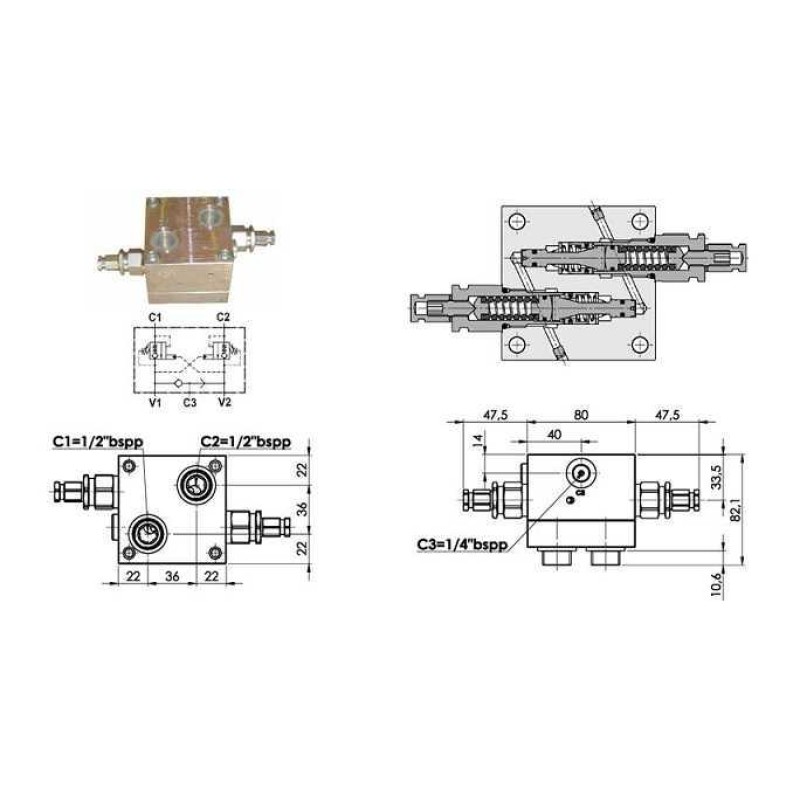

Overcenter valves over motor MOMP/ MOMR/MOMH type. Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.

Full specifications

Technical specifications
Maximum pressure (bar) 250
Maximum flow (L/min) 50
Port connection 1/2" BSP
Valve function Motor-mounted overcenter valve for MOMP/MOMR/MOMH
Adjustment range (bar) 100–350
Adjustment minimum (bar) 100
Adjustment maximum (bar) 350
Original specifications — unverified
Press. increase(bar/turn) 85
Setting, bar 280
