Oleodinamica Marchesini V1450 VDFS 3/4 - 16 UNF seeding-machine row-marker valve

Oleodinamica Marchesini V1450 (VDFS 3/4 - 16 UNF) is a seeding-machine row-marker valve. The factory maximum operating pressure is 350 bar.

The valve alternates row-marker actuator movement as the P/T connection is supplied and unloaded. Connect P/T to the supply/return line and A/B to the actuators. The factory sheet shows arrangements for single-acting and double-acting cylinders; use the relevant original circuit for the machine.

The standard A, B and P/T ports are 3/4 inch-16 UNF SAE connections. A G1/4 reducer is an on-request option and is not assigned to this standard article. The current sheet does not publish a maximum-flow rating.

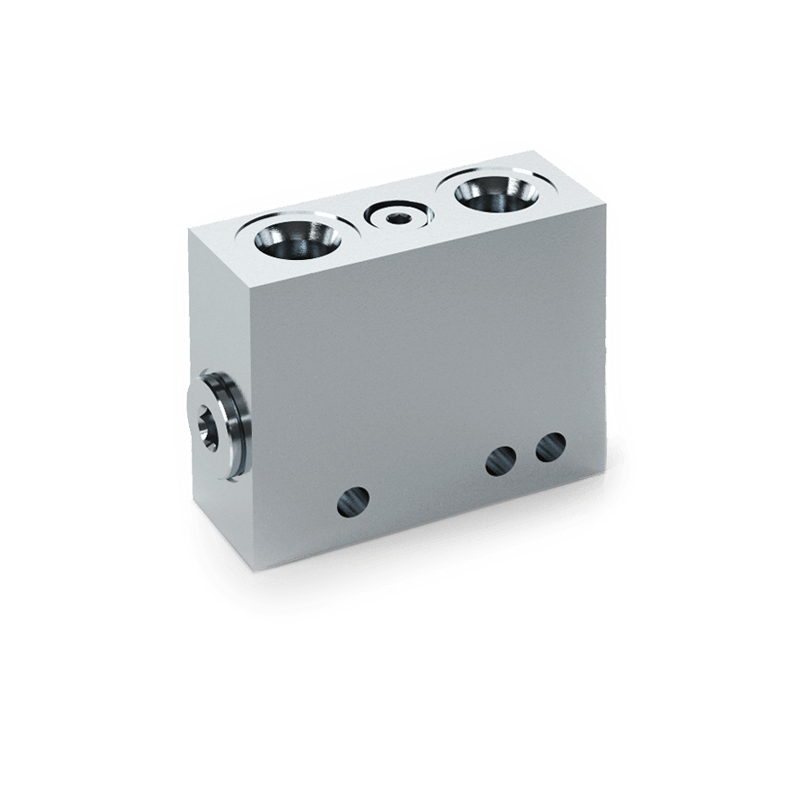

The body is zinc-plated steel with hardened and ground steel internal components and standard BUNA N seals. The local PDF preserves the complete relevant manufacturer ratings, schematic, dimensions and conditions. Representative manufacturer product image for the VDFS series. Use the exact article drawing in the local PDF to check its connections and mounting arrangement.
